Inspection Procedure

1. Check that the stop light comes on when the brake pedal is depressed and goes off when the brake pedal is released.

HINT:

Check the stop lamp bulb because it may burnt out.

Standard: Stop lamp switch function is normal.

NG: Go to step   4

OK: Go to next step.

1. Disconnect the skid control ECU connector S1.

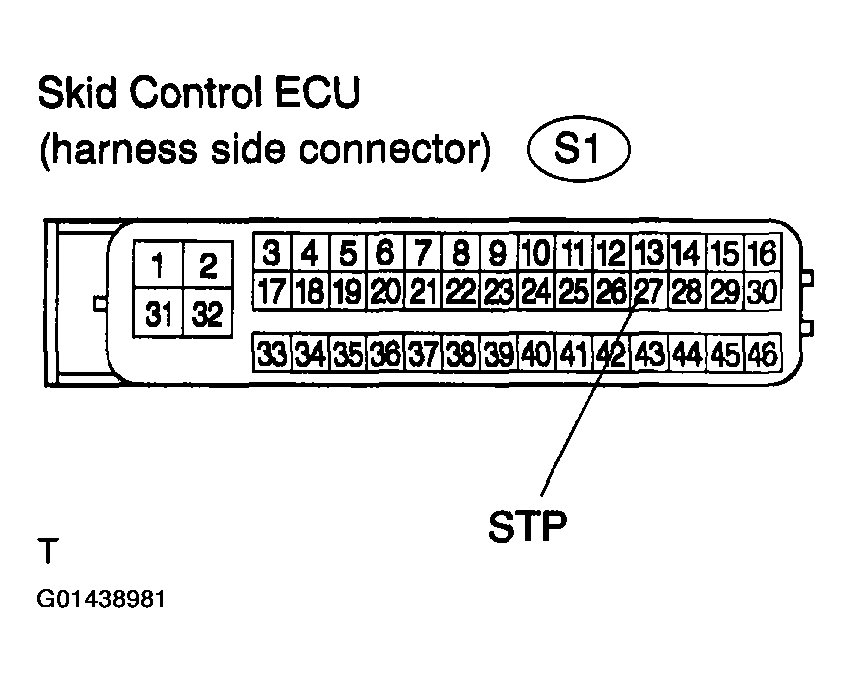

   Fig 1: Disconnecting Skid Control ECU (STP Terminal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in Fig 2 .

   Standard

   Fig 2: Measuring Voltage Between STP & Body Ground Specifications Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step   4

OK: Go to next step.

1. Clear the DTCs. (see PRE-CHECK  )
2. Turn the ignition switch to the ON position.
3. Are the same DTCs recorded? (see PRE-CHECK  )

HINT:

It is suspected that the DTCs were output due to poor connection of the connector terminal.

NO: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE   )

YES: REPLACE BRAKE ACTUATOR ASSY (SEE  REPLACEMENT  )

1. Disconnect the stop lamp switch assy connector S13.
   Fig 3: Disconnecting Stop Lamp Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in Fig 4 .

   Standard

   Fig 4: Switch Pin Condition Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE STOP LAMP SWITCH ASSY

OK: Go to next step.

1. Disconnect the stop lamp switch connector S13 and skid control ECU connector S1.

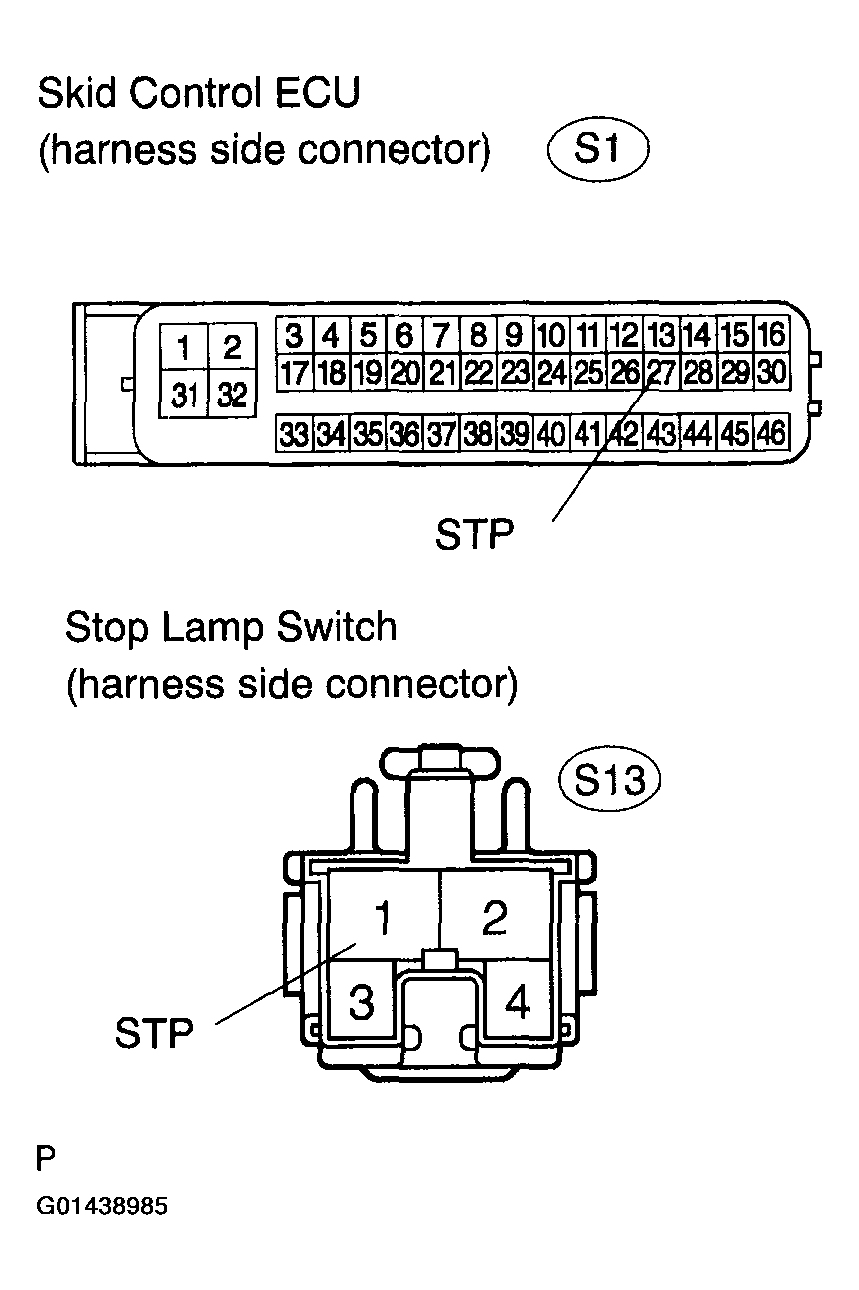

   Fig 5: Disconnecting Stop Lamp Switch Connector & Skid Control ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in Fig 6 .

   Standard

   Fig 6: Measuring Resistance Between STP Specifications Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE BRAKE ACTUATOR ASSY (SEE  REPLACEMENT  )
