Vehicle S/W Management

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Start "ON".
  2. Gear Lever position "P".
  3. Vehicle speed 0 km/h.
  4. Battery normal. (10V or higher)
  5. NO DTC
  1. Connect GDS to "Data Link Connector (DLC)".
  2. Select the "Vehicle S/W Management" about related DTC with GDS.
  3. Perform "TCU LEARNING" of vehicle S/W Management.
  4. After final operation, go to "Verification of Vehicle Repair" procedure.
 Fig.1 to 6
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

Fig.1 to 6) Transmission Learning S/W Management Steps.

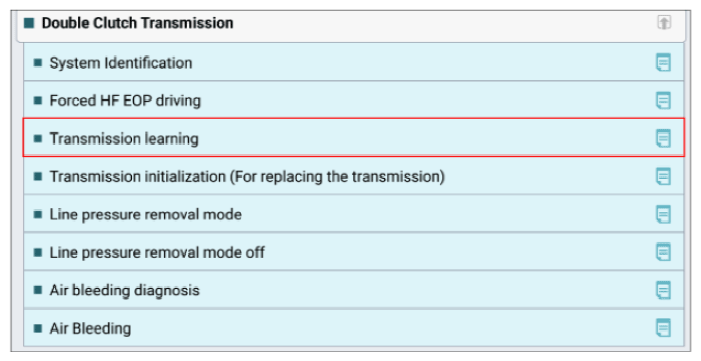

G14540621Courtesy of HYUNDAI MOTOR AMERICA

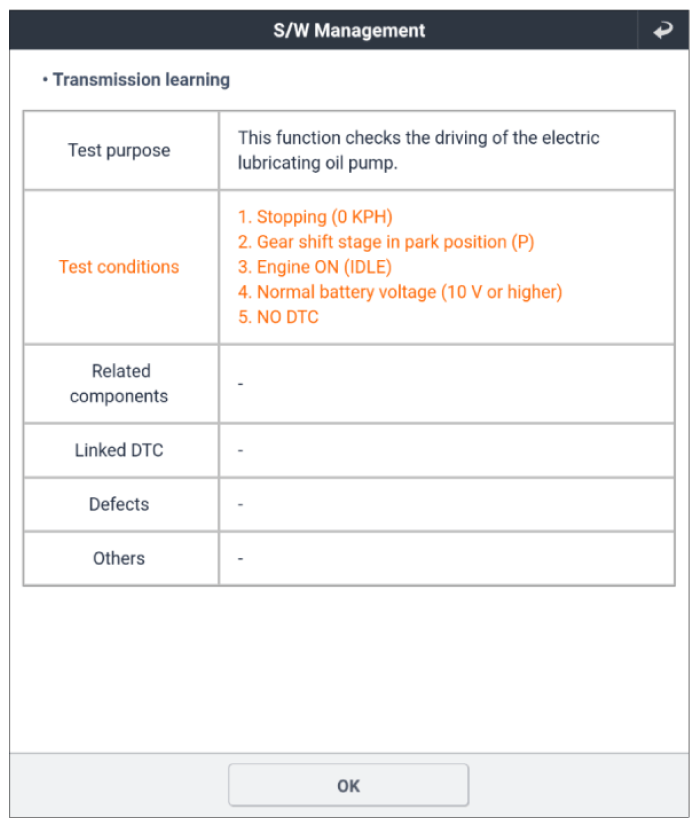

G14540622Courtesy of HYUNDAI MOTOR AMERICA

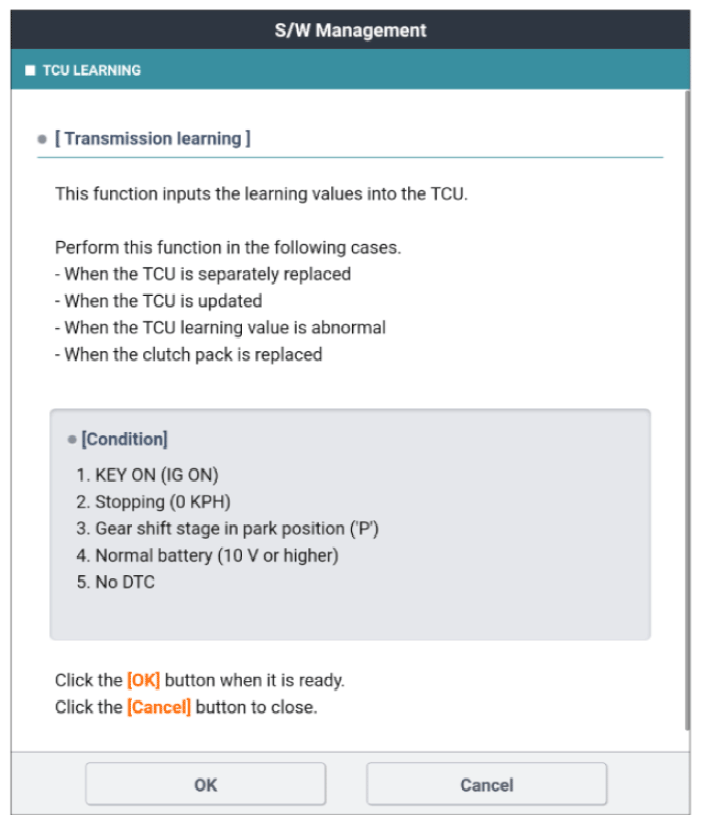

G14540623Courtesy of HYUNDAI MOTOR AMERICA

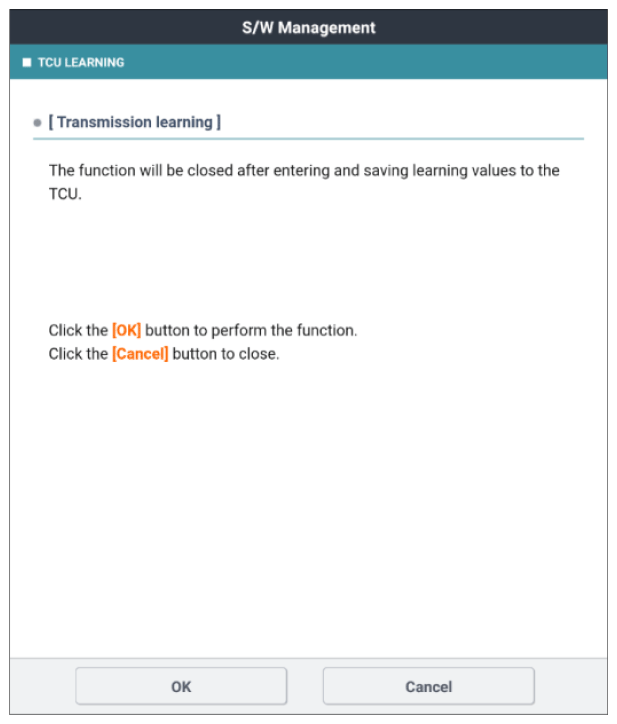

G14540624Courtesy of HYUNDAI MOTOR AMERICA
G14540625Courtesy of HYUNDAI MOTOR AMERICA
G14540626Courtesy of HYUNDAI MOTOR AMERICA
