Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/recycling/charging station.
3. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

4. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

5. Disconnect the steering column connectors.

   (Refer to Steering System - "REMOVAL AND INSTALLATION ")

6. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

   (Refer to Steering System - "REMOVAL AND INSTALLATION ")

7. Disconnect the expansion valve from the evaporator core.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

8. Disconnect the inlet and outlet heater hoses from the heater unit.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

9. Remove both sides of front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

10. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

11. Remove the shift lever assembly.

    (Refer to DCT - "SHIFT LEVER ")

12. Loosen the cowl cross member mounting bolts.

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 -18.8 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

13. Loosen the mounting nut and remove the center console duct (A).

    Courtesy of HYUNDAI MOTOR AMERICA

14. Disconnect the airbag control module (SRSCM) connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

15. Remove the rear air duct (A)

    Courtesy of HYUNDAI MOTOR AMERICA

16. Separate the floor carpet (A) to obtain space for removing the rear heating duct.

    Courtesy of HYUNDAI MOTOR AMERICA

17. Loosen the mounting nuts and remove the front air duct (A).

    Courtesy of HYUNDAI MOTOR AMERICA

18. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

19. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of HYUNDAI MOTOR AMERICA

20. Disconnect the multi box connectors (A).

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

21. Disconnect the heater and blower unit connector.

    [Driver's]

    1. Disconnect the mode actuator (A) and temperature actuator (B).

       Courtesy of HYUNDAI MOTOR AMERICA

       Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    1. Disconnect the temperature actuator (A), evaporator temperature sensor (B) and mode actuator (C).

       Courtesy of HYUNDAI MOTOR AMERICA

       Courtesy of HYUNDAI MOTOR AMERICA

    2. Disconnect the auto defogging actuator (A) and intake actuator connector (B).

       Courtesy of HYUNDAI MOTOR AMERICA

       Courtesy of HYUNDAI MOTOR AMERICA

    3. Disconnect the blower motor connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

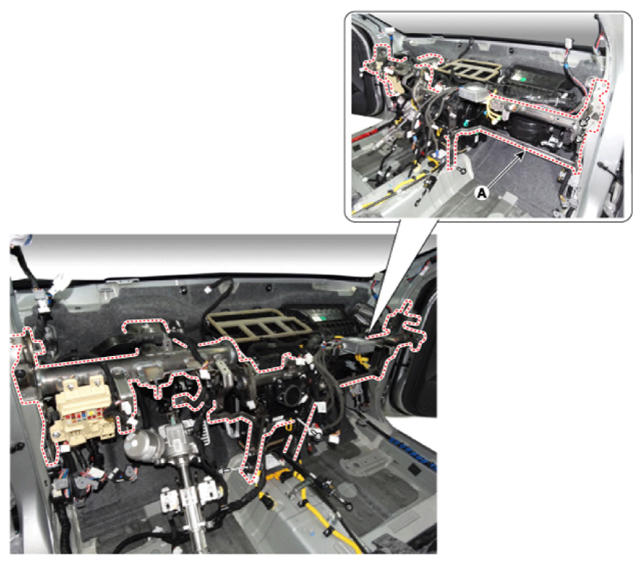

22. After loosening the bolts and nuts, remove the cowl cross bar assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 -18.8 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

23. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti- theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
