Removal And Installation
- Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.

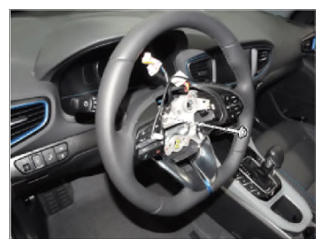

- Turn the steering wheel so that the front wheels are placed in the straight ahead position.
- Remove the Driver Airbag Module (DAB).NOTE:

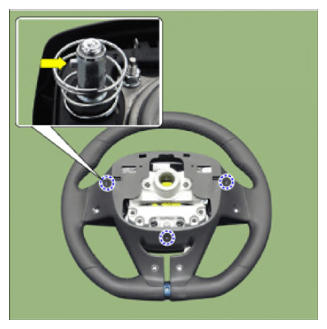

- Insert the end of the flat tool along the guide hole. (ø 5mm allen wrench recommend.)
- After inserting the tool, lightly press it. Can be easily remove the air bag module.

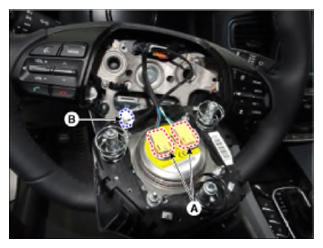

- Disconnect the airbag module connector (A) and horn connector (B).NOTE:
- The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

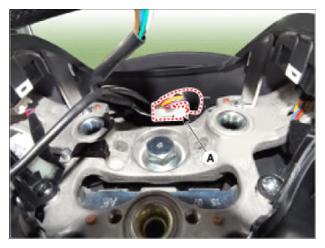

- Disconnect the connector (A).
- Remove the steering wheel by loosening the lock bolt.NOTE:
- Do not reuse the steering lock bolt.

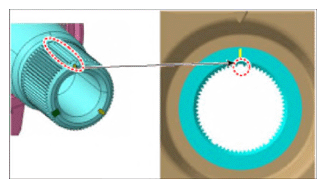

- When assembling, match the gear teeth as shown in the illustration.
- Install in the reverse order of removal.
