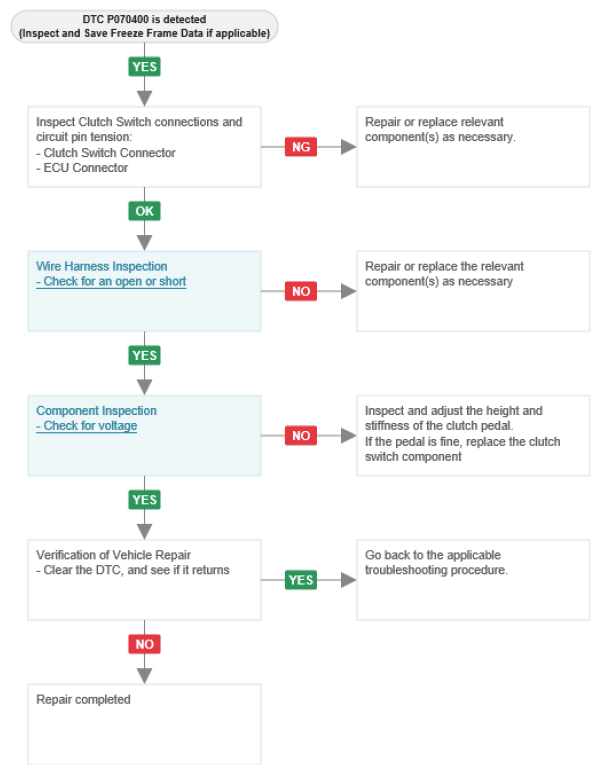

Diagnostic Flowchart

WARNING: This page is about a different variant/trim than selected.
G14610042Courtesy of HYUNDAI MOTOR AMERICA
