Section 17 (Engine Control System Diagnosis - 2.0L (Except HEV) (1 Of 6))
>>
DTC P0014-00: 'B (Exhaust)' Camshaft Position - Timing Over-Advanced Or System Performance (Bank 1)
>>
Troubleshooting
>>

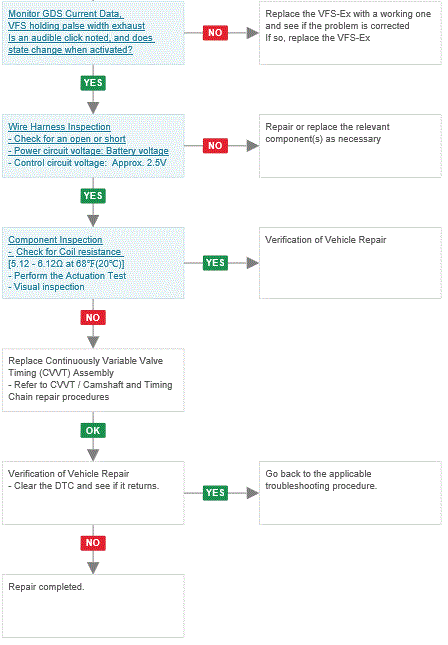

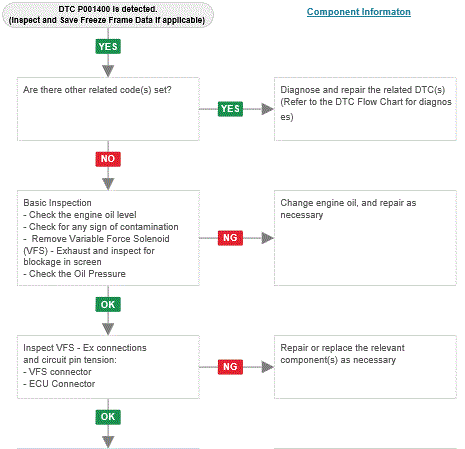

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
