Variable Intake System - Bank1 (VIS - Bank1)

WARNING: This page is about a different variant/trim than selected.

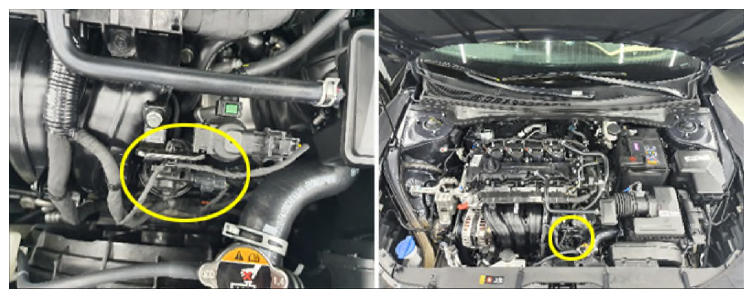

G14609725Courtesy of HYUNDAI MOTOR AMERICA

Variable intake system (VIS) is a device which varies the length of intake manifold to generate maximum power at certain RPM. VIS lengthens intake manifold to improve the torque at low RPM when vehicle speed is low while it shortens intake manifold to raise torque at high RPM when vehicle speed is high. Engine Control Module (ECM) controls VIS using RPM signal.
