Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

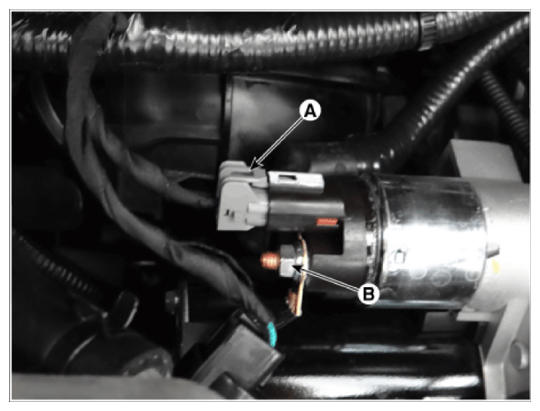

- Remove the stater solenoid "B" terminal mounting nut, and then disconnect the stater cable (A) and ST connector (B).

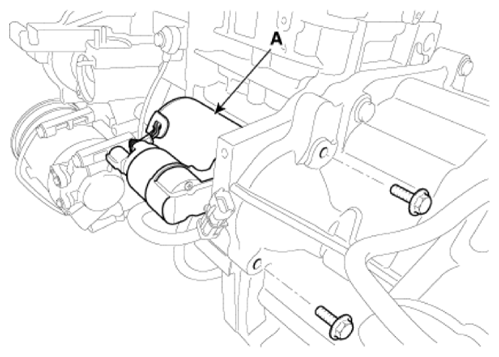

- Remove the stater (A) after loosening the mounting bolts.
Starter mounting bolt:
42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
