Starter Brush Holder Test

WARNING: This page is about a different variant/trim than selected.

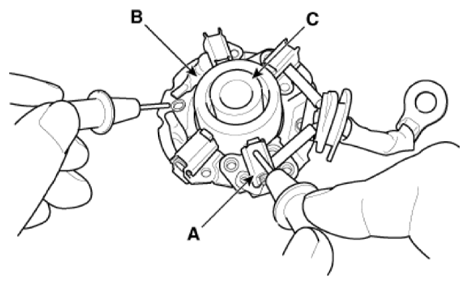

Make sure there is no continuity between the (+) brush holder (A) and (-) plate (B). If there is continuity, replace the brush holder assembly.

G14525151

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Use a pipe (C) of suitable size for the brushes not to get removed from the brush holder.
