Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

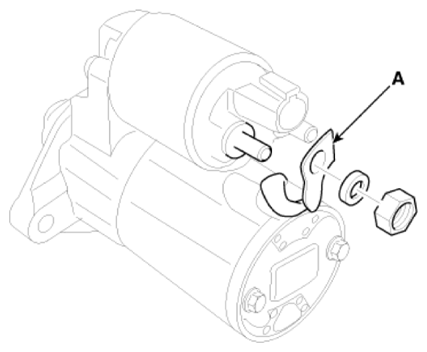

Disconnect the M-terminal (A) on the magnet switch assembly.

Courtesy of HYUNDAI MOTOR AMERICA

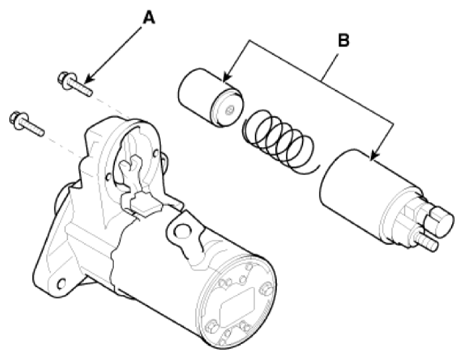

After loosening the screws (A), detach the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

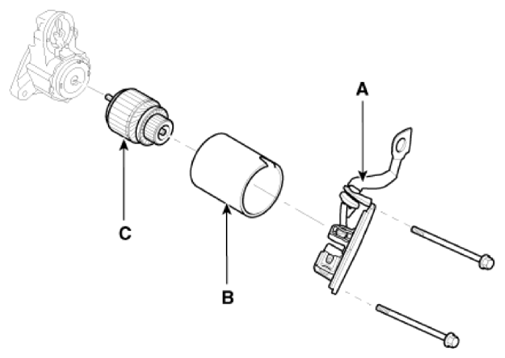

Loosen the through bolts and then remove the brush holder assembly (A), yoke (B) and armature (C).

Courtesy of HYUNDAI MOTOR AMERICA

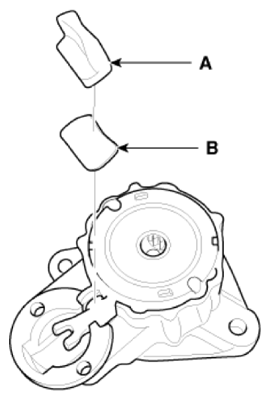

Remove the lever packing (A) and lever plate (B).

Courtesy of HYUNDAI MOTOR AMERICA

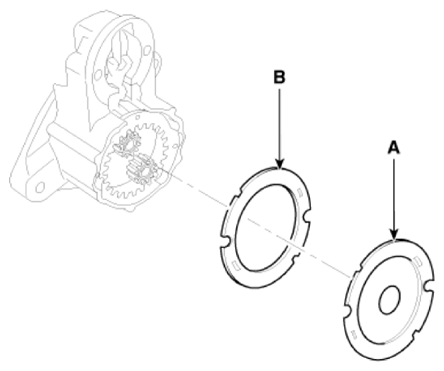

Remove the shield (A) and packing (B).

Courtesy of HYUNDAI MOTOR AMERICA

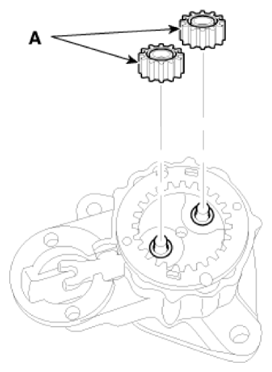

Disconnect the planet gear (A).

Courtesy of HYUNDAI MOTOR AMERICA

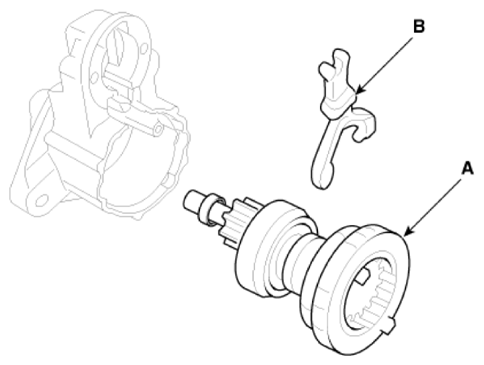

Disconnect the planet shaft assembly (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA
Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA

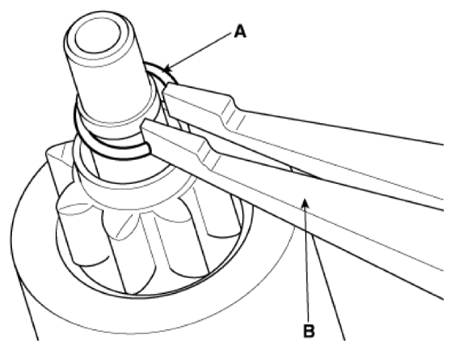

Remove the stop ring (A) using stop ring pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA

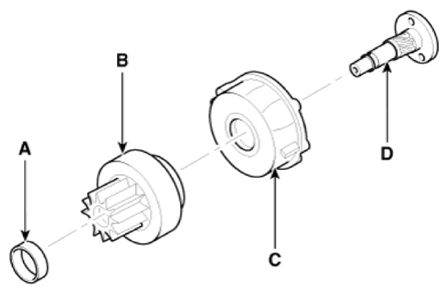

Disconnect the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

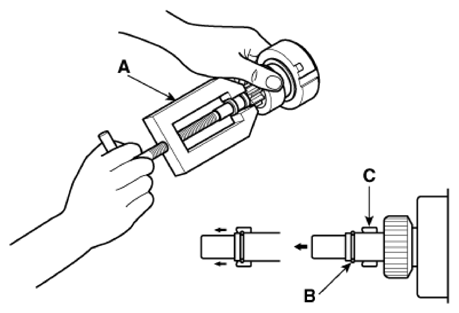

- Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).
Courtesy of HYUNDAI MOTOR AMERICA
Reassemble in the reverse order of disassembly.
