Components And Components Location: Component

WARNING: This page is about a different variant/trim than selected.

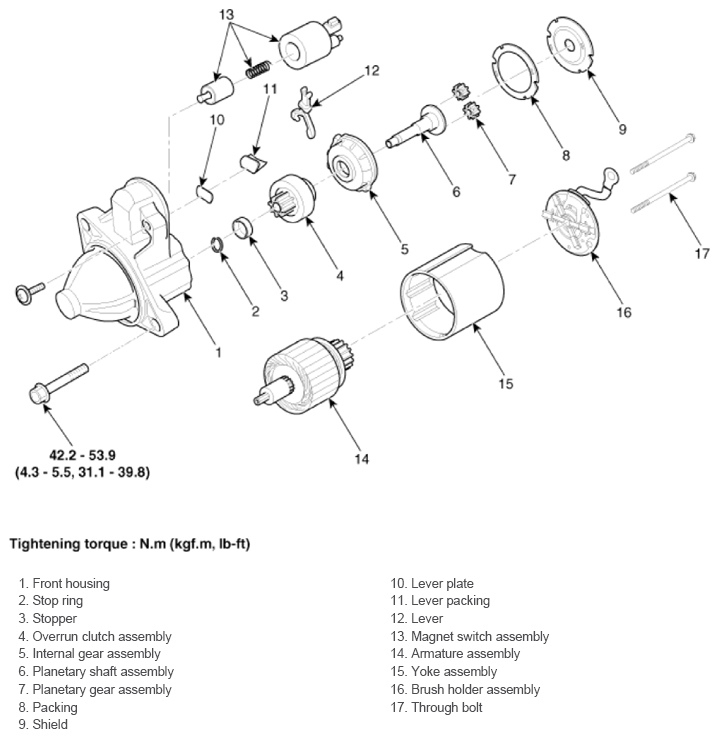

Fig 1: Starter Components Location With Torque Specification
G14525128Courtesy of HYUNDAI MOTOR AMERICA
