Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.

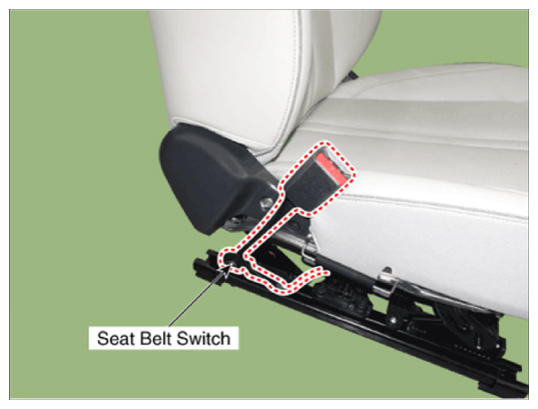

- Remove the connector from the switch.
- Check for continuity between terminals.
| Seat Belt Condition |
Continuity |
| Fastened |
Non-conductive (∞Ω) |
| Not fastened |
Conductive (Ω) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
