Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

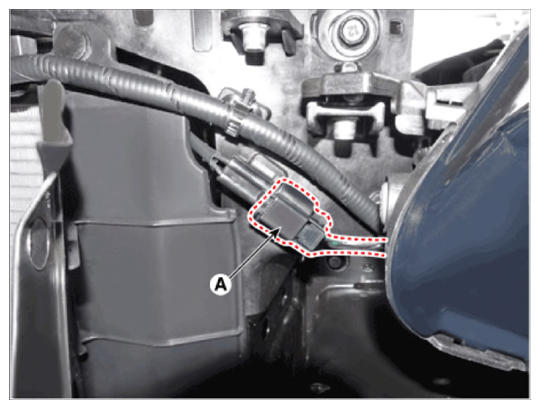

  1. Disconnect the hood switch connector (A) after loosening the mounting bolt.
    G14525179Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between terminals.
G14525180Courtesy of HYUNDAI MOTOR AMERICA
