Trunk Lock Module Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the tailgate trim.
(Refer to TRUNK LID TRIM Body - "Tailgate Trim")
- Disconnect the 4P connector from the actuator.

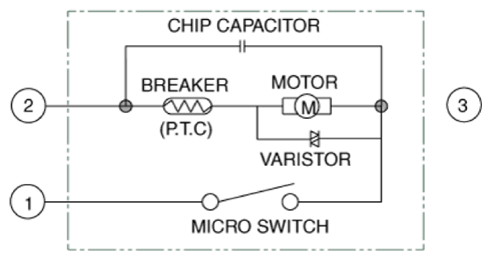

- Check for continuity between the terminals in each switch position according to the table.
