Rear Door Lock Module Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")
- Remove the rear door module.
(Refer to Body - "REAR DOOR MODULE ")

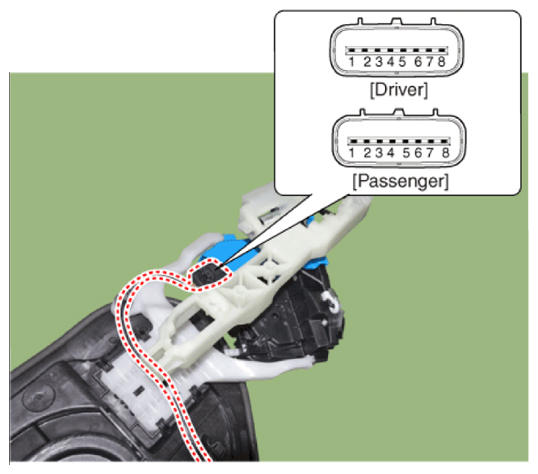

- Disconnect the connectors from the actuator.

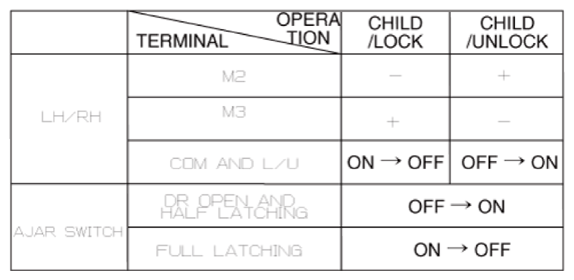

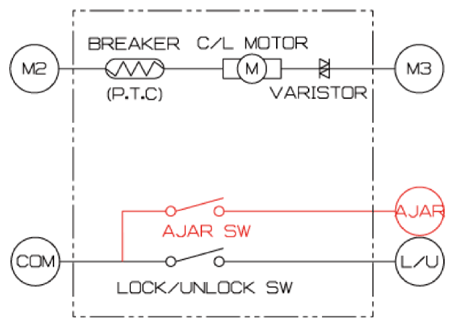

- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
| Terminal | Operation | |
|---|---|---|
| LH | RH | |
| 1 | - | M1 |
| 2 | COM | M2 |
| 3 | Lock/Unlock switch | - |
| 4 | AJAR | - |
| 5 | - | AJAR |
| 6 | - | Lock/Unlock switch |
| 7 | M2 | COM |
| 8 | M1 | - |
