Front Door Lock Module Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
- Remove the front door module.
(Refer to Body - "FRONT DOOR MODULE ")

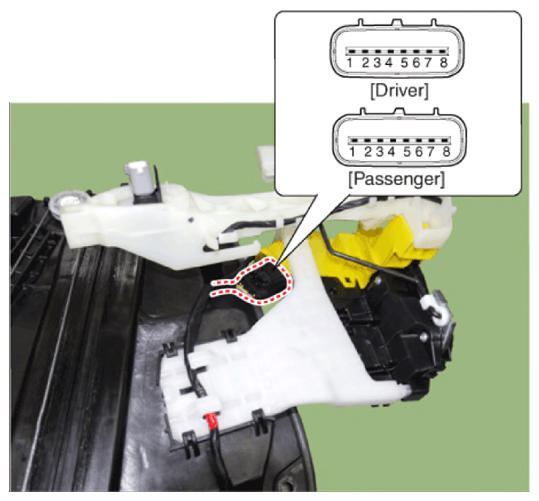

- Disconnect the connectors from the actuator.

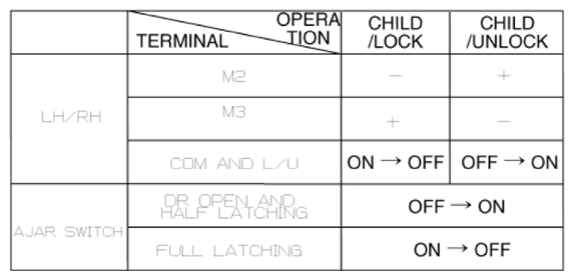

- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

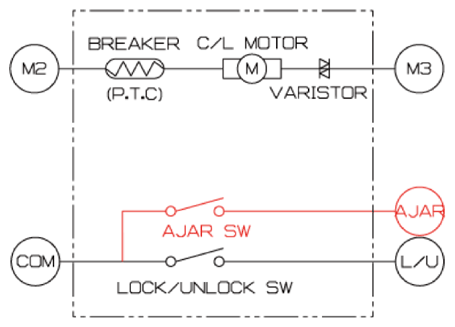

| Pin | Driver | Passenger |
|---|---|---|
| 1 | - | M2 |
| 2 | COM | M3 |
| 3 | Lock/Unlock switch | - |
| 4 | AJAR | - |
| 5 | - | AJAR |
| 6 | - | Lock/Unlock switch |
| 7 | M3 | COM |
| 8 | M2 | - |
