Repair Procedures: Removal: [200W]/[450W]
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and then disconnect the battery (-) terminal.
- Remove the heater & A/C control unit.
(Refer to HEATER & A/C CONTROL UNIT (DATC) Heating, Ventilation and Air Conditioning - "Heater & A/C Control Unit")

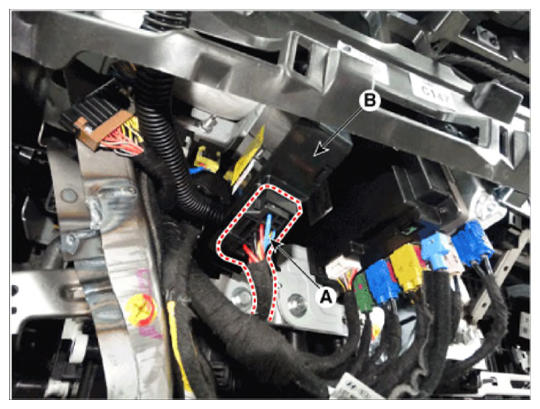

- Disconnect the DC/DC converter connector (A).
- Remove the DC/DC converter connector (B) after loosening the mounting bolt.
Tightening Torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.2 - 8.7 lb-ft)
