Fuse Inspection

WARNING: This page is about a different variant/trim than selected.

Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

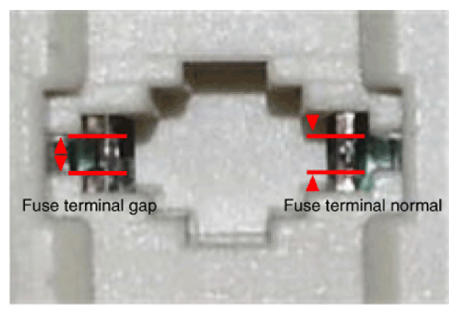

G14525154Courtesy of HYUNDAI MOTOR AMERICA

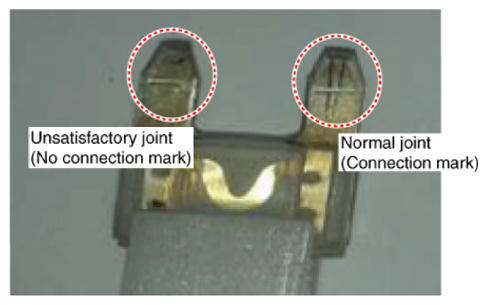

G14525155Courtesy of HYUNDAI MOTOR AMERICA
