Diagnostic tool Data Analysis
WARNING: This page is about a different variant/trim than selected.
- Analyze diagnostic tool data and confirm if there is anything wrong with the stop lamp switch.
- Connect the diagnostic tool to the self-diagnosis connector.
- Turn the spark switch on
- Step on the brake pedal.
- Inspect the "brake switch" category that displays the "sensor data" diagnostic tool.

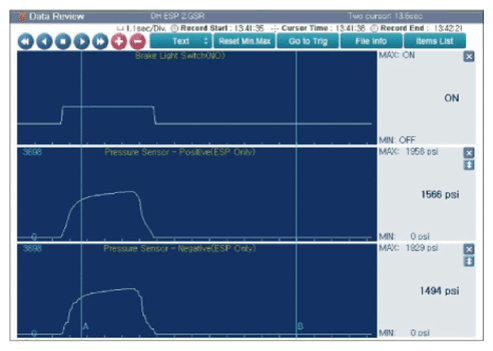

Normal waveform: The pressure sensor signal value will change according to the brake ON/OFF switch.
