Description And Operation: Description

WARNING: This page is about a different variant/trim than selected.

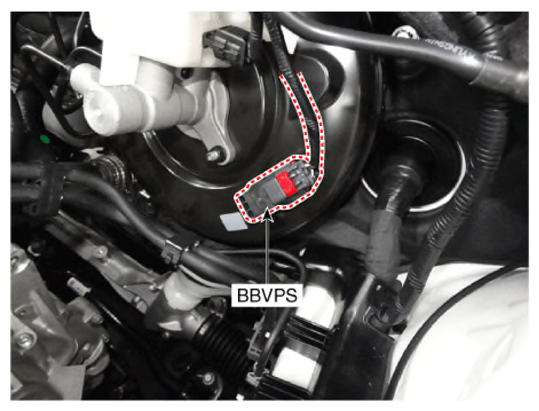

In order to ensure adequate brake power assistance in every situation, the brake booster is equipped with a partial vacuum sensor. The brake booster vacuum pressure sensor is located beside the brake booster.

G14525034Courtesy of HYUNDAI MOTOR AMERICA
