Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
- Remove the drive belt tensioner.
(Refer to Engine Mechanical System - "DRIVE BELT TENSIONER ")

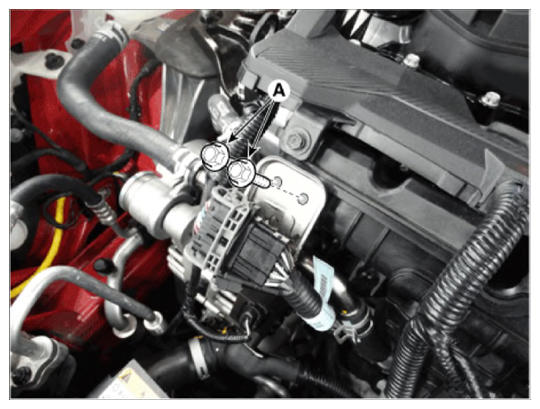

- Remove the return hose & pipe bracket bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

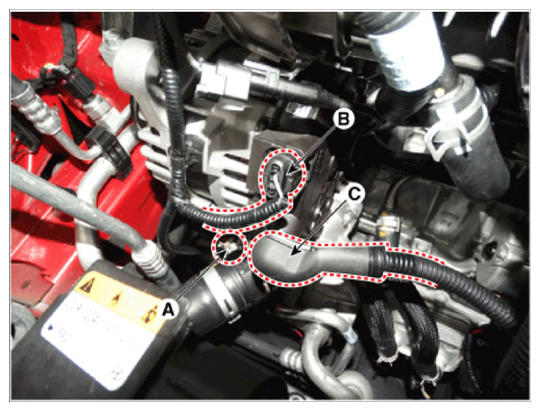

- Remove the compressor connector (A) and alternator connector (B), and then disconnect the cable (C) from the alternator "B" terminal.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

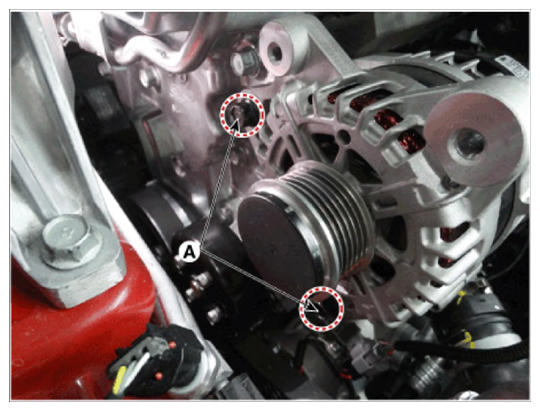

- Remove the alternator mounting bolt (A).
Tightening Torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

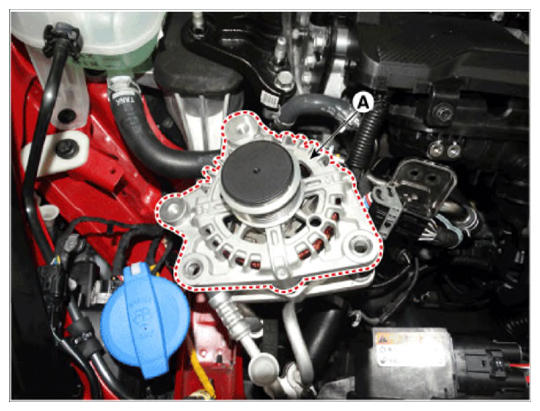

- Remove the alternator (A).
