Disassembly and Reassembly

WARNING: This page is about a different variant/trim than selected.

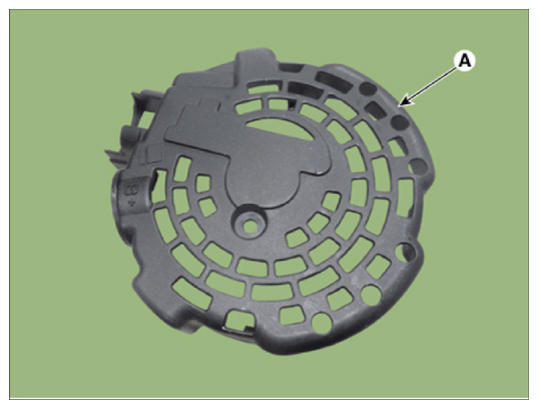

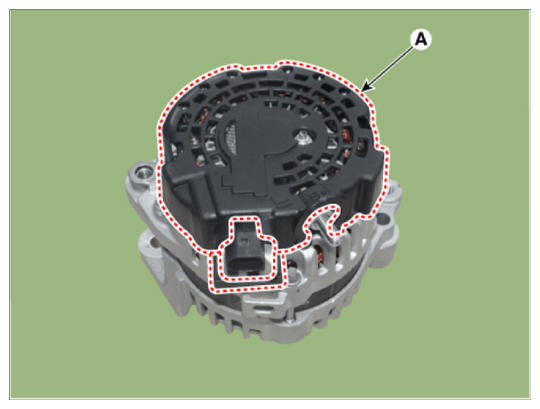

  1. Remove the rear cover (A).
    G14525115Courtesy of HYUNDAI MOTOR AMERICA
    G14525116Courtesy of HYUNDAI MOTOR AMERICA

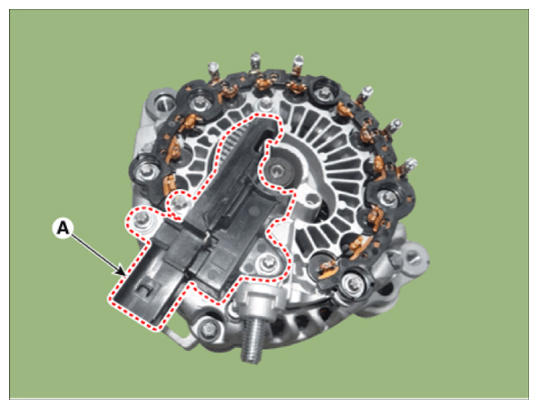

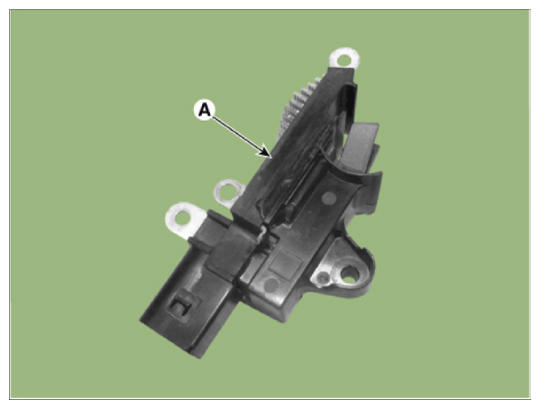

  2. Remove the regulator assembly (A) after loosening the mounting bolt.
    NOTE:
    • Be careful not to damage the surrounding parts.
    G14525117Courtesy of HYUNDAI MOTOR AMERICA
    G14525118Courtesy of HYUNDAI MOTOR AMERICA

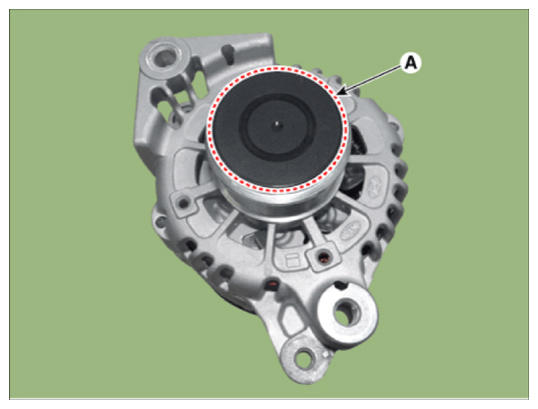

  3. Remove the overrunning alternator pulley (OAP) cap (A).
    G14525119Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAD cap.

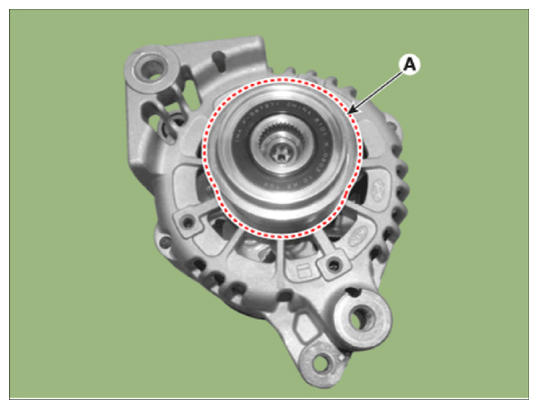

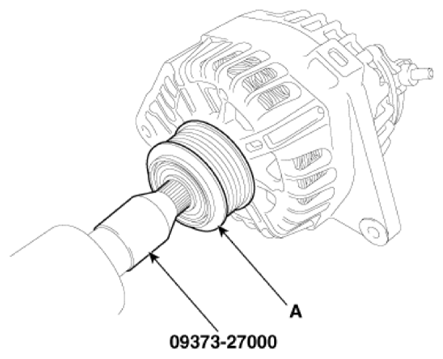

  4. Remove the OAP (A) using the SST (09373-27000).
    G14525120Courtesy of HYUNDAI MOTOR AMERICA
    G14525121Courtesy of HYUNDAI MOTOR AMERICA

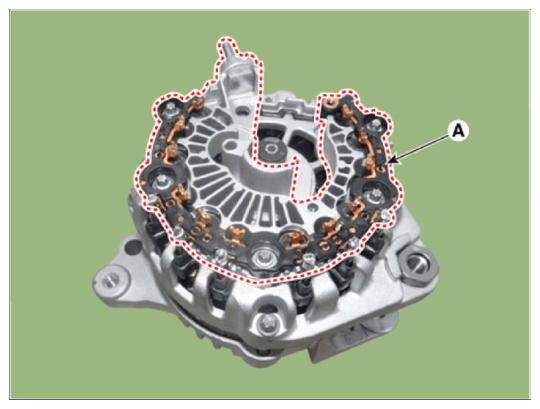

  5. Unsolder the stator leads and then removing the regulator (A).
    G14525122Courtesy of HYUNDAI MOTOR AMERICA

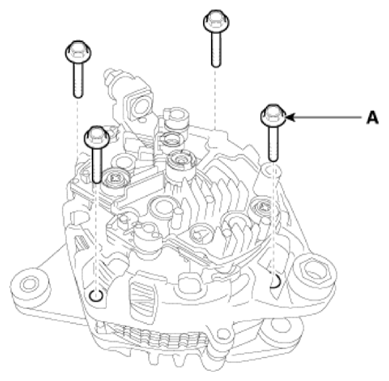

  6. Loosening the penetration bolt (A).
    G14525123Courtesy of HYUNDAI MOTOR AMERICA

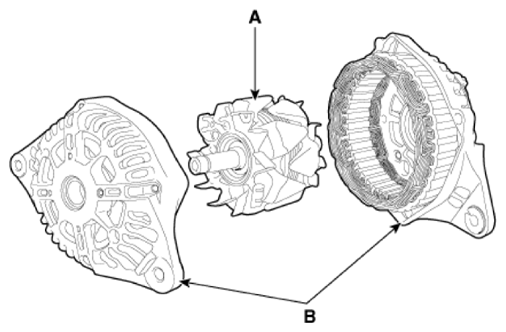

  7. Remove the rotor (A) from the housing (B).
    G14525124Courtesy of HYUNDAI MOTOR AMERICA
  8. Reassemble in the reverse order of disassemble.
