Repair Procedures: Removal
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Information
- Mark all wiring and hoses to avoid misconnection.
- Disconnect the battery negative terminal.
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")
- Remove the drive belt tensioner.
(Refer to Timing System - "DRIVE BELT TENSIONER ")
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")
- Remove the crankshaft damper pulley.
(Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")
- Remove the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
- Remove the water pump.
(Refer to Cooling System - "WATER PUMP ")

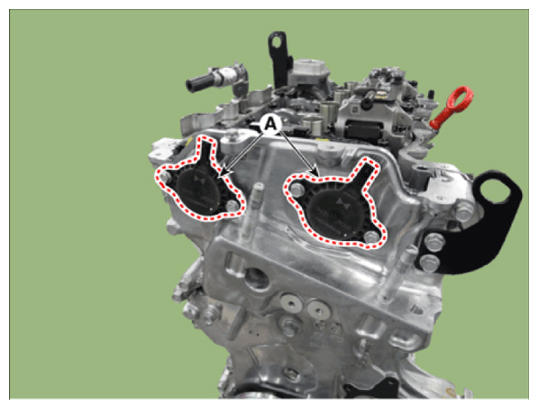

- Remove the intake and exhaust variable force solenoid (VFS) valves (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
NOTE:- The variable force solenoid (VFS) must be removed before removing the timing chain cover.

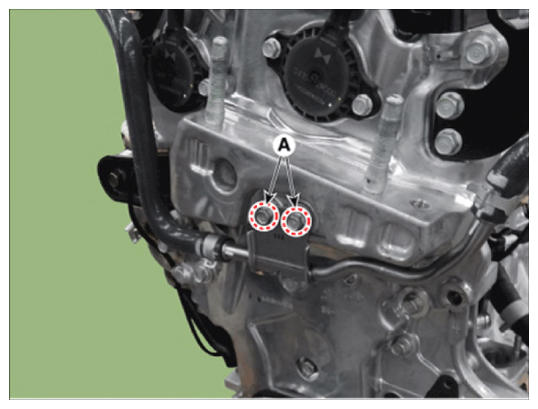

- Remove the turbo charger coolant hose and pipe mounting bolts (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Remove the oil pan.
(Refer to Lubrication System - "OIL PAN ")
- Insert the rubber block between jack and lower crankcase.

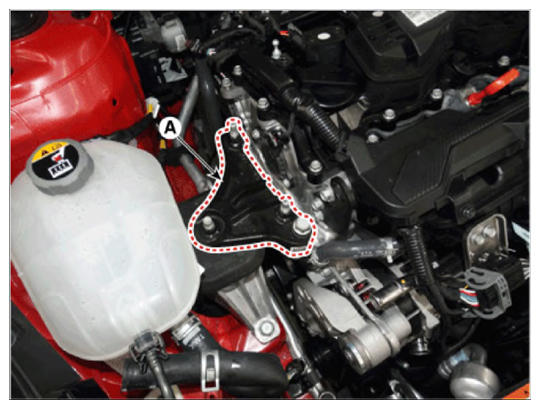

- Remove the engine mounting support bracket (A).
Tightening torque:
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

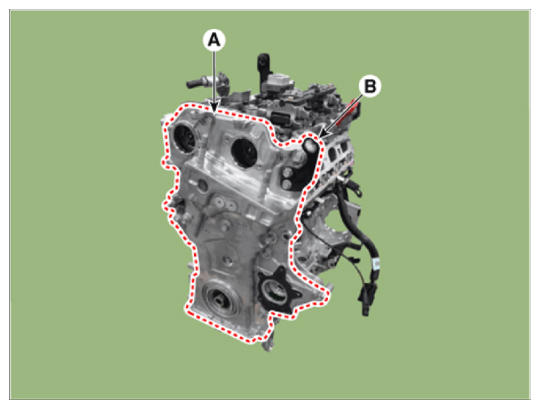

- Remove the timing chain cover (A) and hanger (B).
