Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

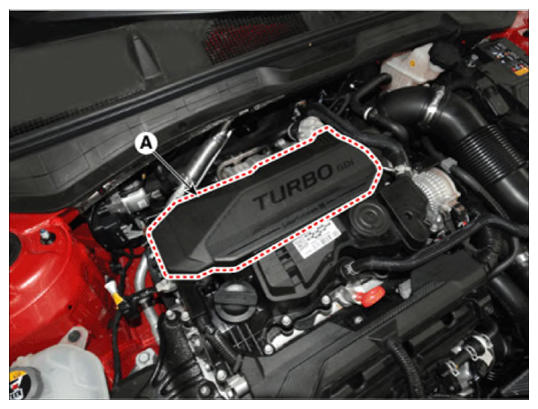

Remove the engine cover.

Courtesy of HYUNDAI MOTOR AMERICA

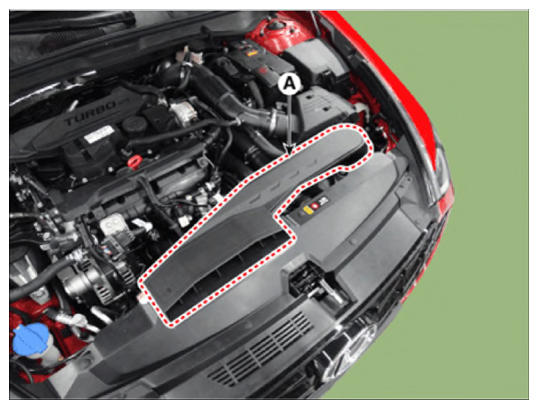

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

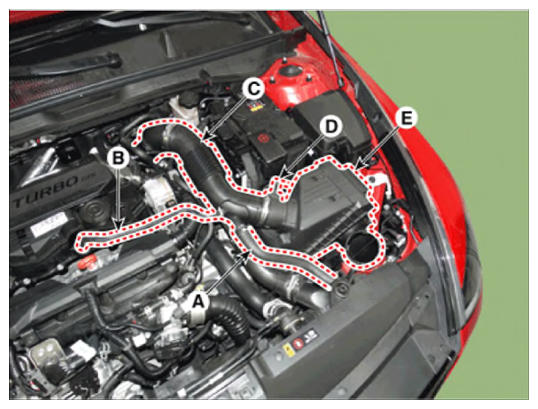

Remove the air cleaner assembly.

Disconnect the RCV hose (A).
Disconnect the breather hose (B).
Disconnect the intake air hose (C).
Disconnect the air flow sensor (AFS) connector (D).

Remove the air cleaner assembly (E).

Tightening torque:

Hose Clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

Air Cleaner Assembly: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

G14524549

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

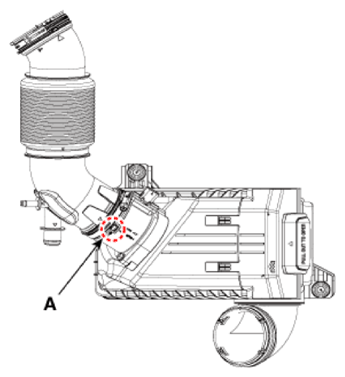

When install the intake hose, match the alignment marks (A).

G14524550

Courtesy of HYUNDAI MOTOR AMERICA

Remove the battery.

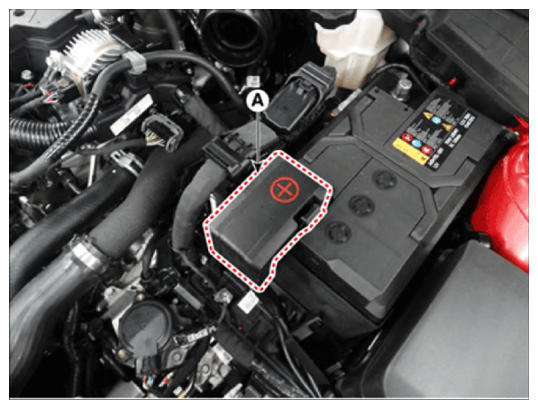

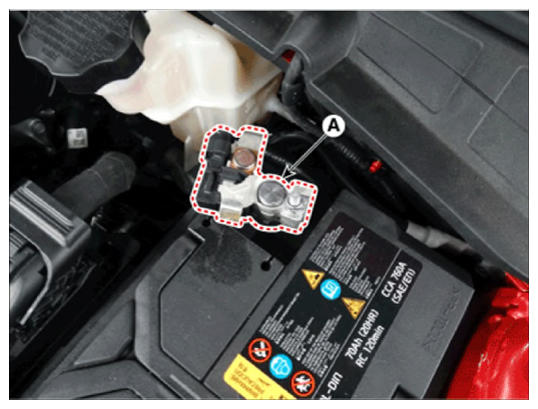

Open the "+" cable cover (A).

G14524551

Courtesy of HYUNDAI MOTOR AMERICA

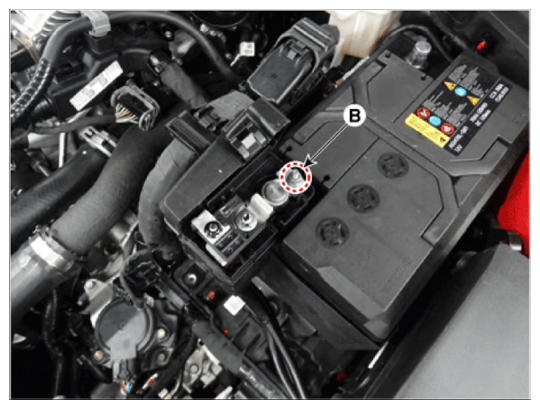

Loosen the "+" cable mounting nut (B).

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

G14524552

Courtesy of HYUNDAI MOTOR AMERICA

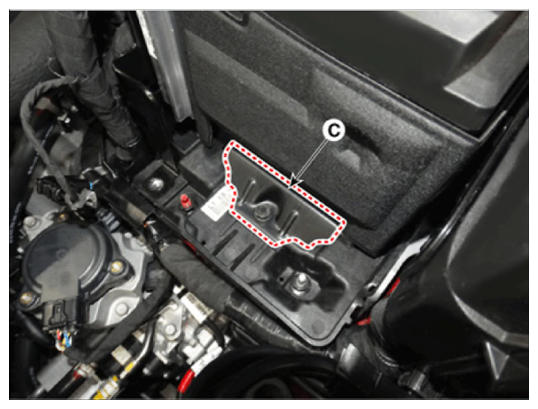

Remove the battery mounting bracket (C), and then remove the battery.

Tightening torque:

18.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 13.7 - 21.7 lb-ft)

G14524553

Courtesy of HYUNDAI MOTOR AMERICA

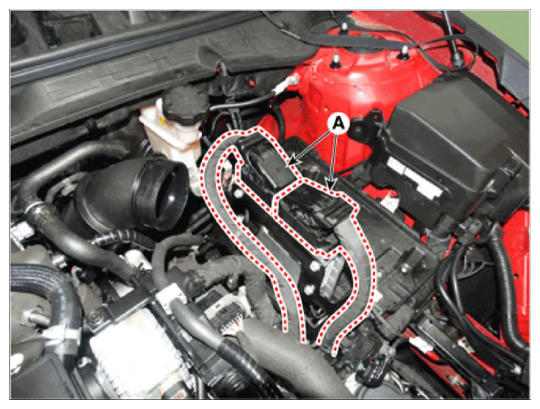

Disconnect the ECM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

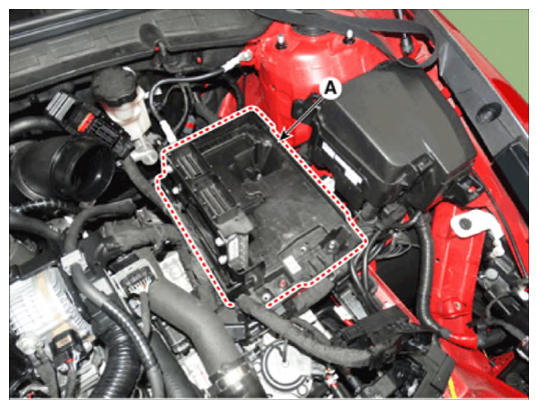

Remove the ECM & battery tray (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the intercooler inlet hoses & pipe.

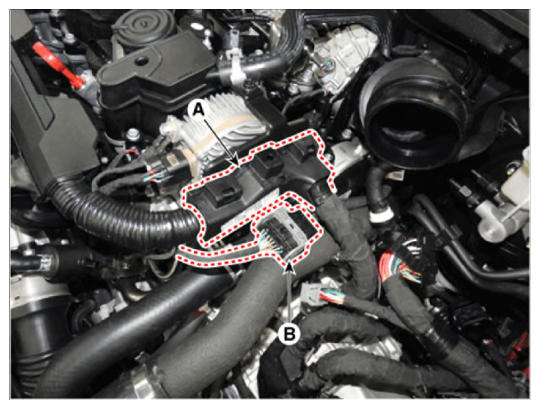

Disconnect the main wiring (A), connector (B) from intercooler inlet pipe.

G14524556

Courtesy of HYUNDAI MOTOR AMERICA

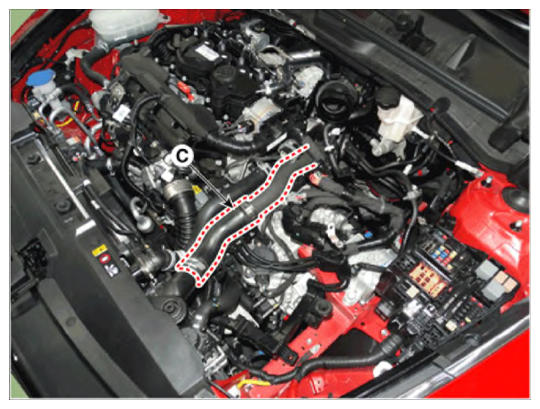

Remove the intercooler inlet hose & pipe (C).

Tightening torque:

Mounting Blot: 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Clamp Bolt: 4.9 - 6.9 N.m 0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

G14524557

Courtesy of HYUNDAI MOTOR AMERICA

Loosen the drain plug, and drain the coolant.
(Refer to Cooling System - "COOLANT ")

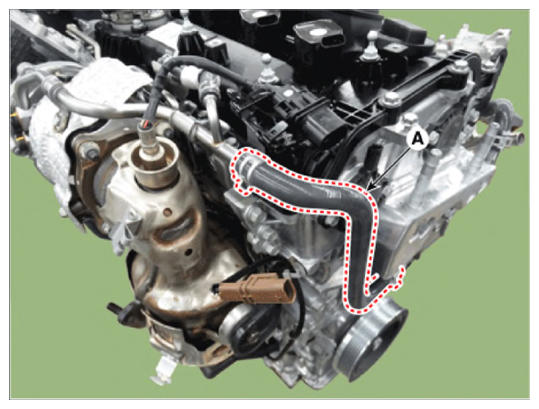

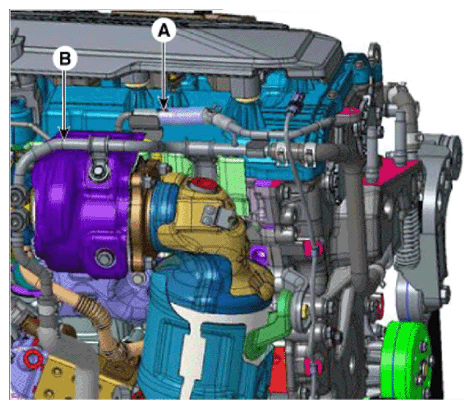

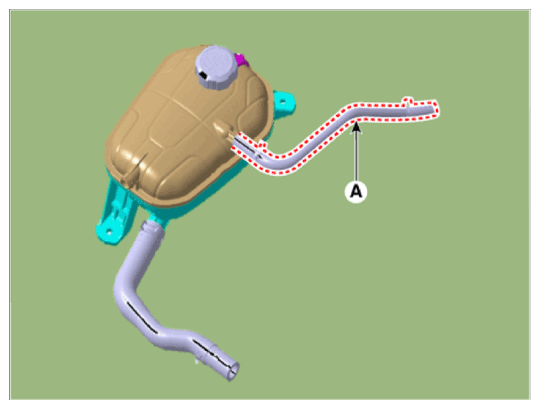

Disconnect the reservoir tank hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the turbo charger outlet hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the warm up catalytic converter (WCC) upper stay bracket (A).
Tightening torque:

49.1 - 54.0 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, temporarily tighten the nut in picture order.

  Fig 1: Warm Up Catalytic Converter (WCC) Upper Stay Bracket Nuts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the front muffler.
(Refer to Intake and Exhaust Manifold - "FRONT MUFFLER ")

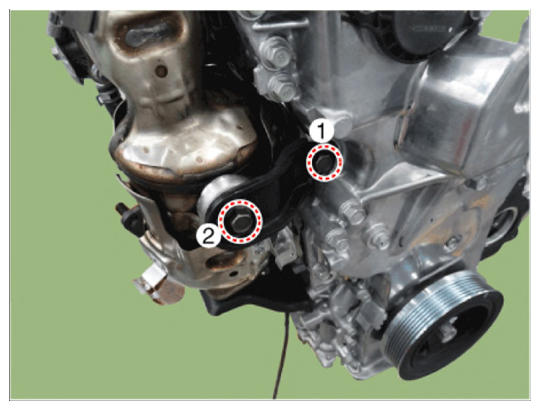

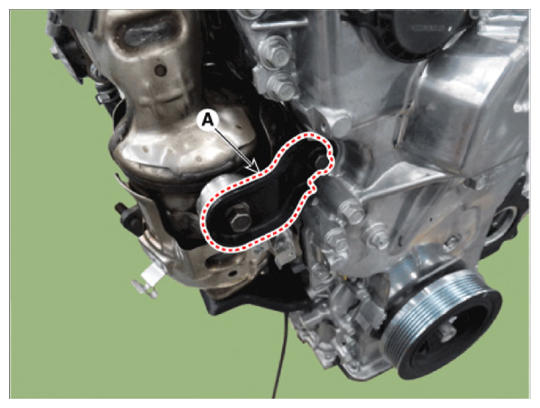

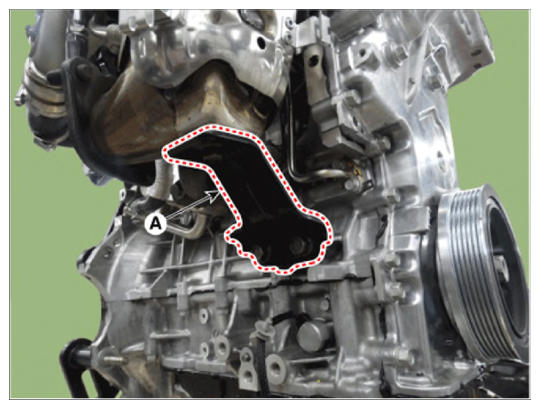

Remove the warm up catalytic converter (WCC) lower stay bracket (A).
Tightening torque:

49.1 - 54.0 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

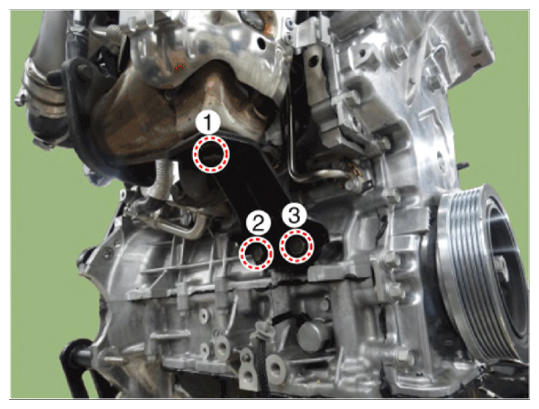

- When installing, temporarily tighten the nut in picture order.

  Fig 2: Warm Up Catalytic Converter (WCC) Lower Stay Bracket Nuts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the EGR cooler pipe mounting bolt (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with a new gasket.

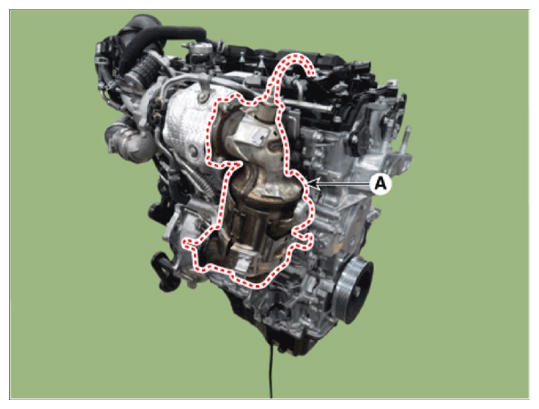

Remove the warm up catalytic converter (WCC) (A).
Tightening torque:

35.3 - 41.2 N.m (3.6 - 4.2 kgf.m, 26.0 - 30.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with a new gasket.
Disconnect the turbo charger outlet hose (A), and then remove the water pipe (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

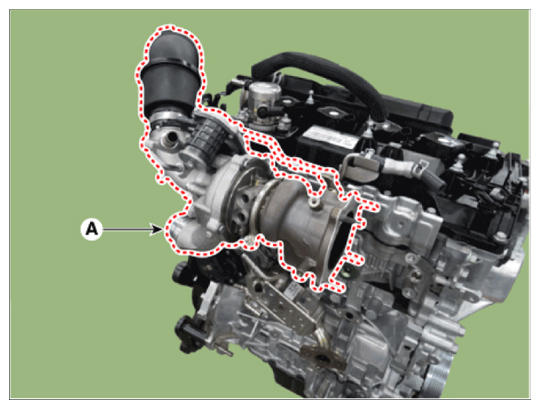

Remove the turbo charger inlet hose & pipe (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with a new gasket.

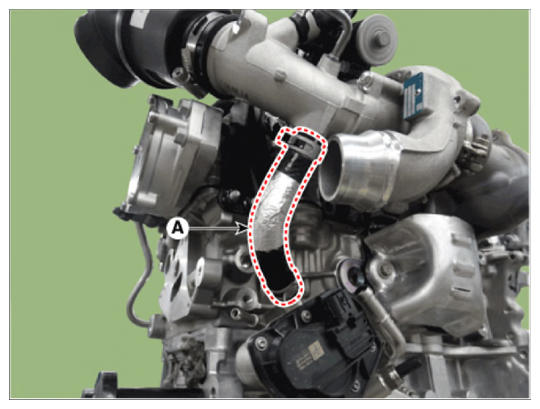

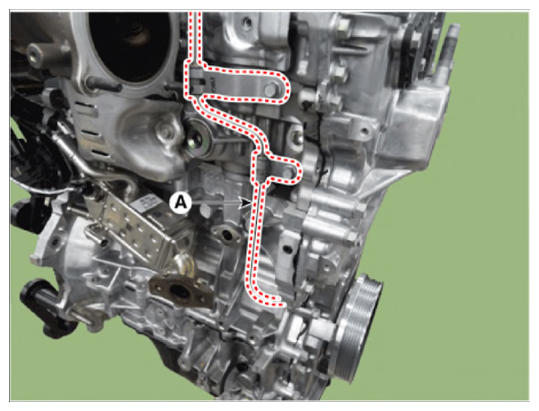

Remove the turbo charger oil drain pipe (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with a new gasket.

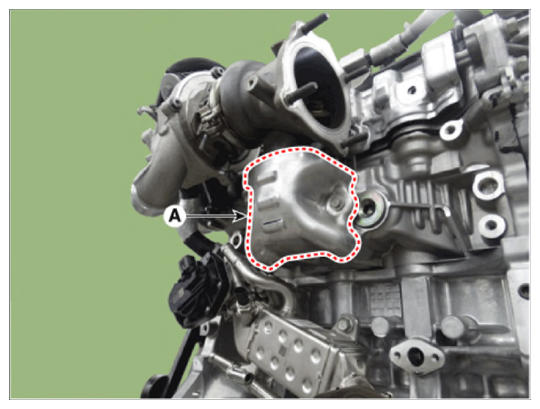

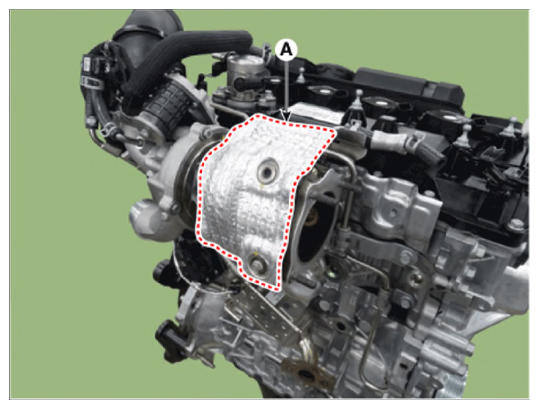

Remove the turbo charger heat protect (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

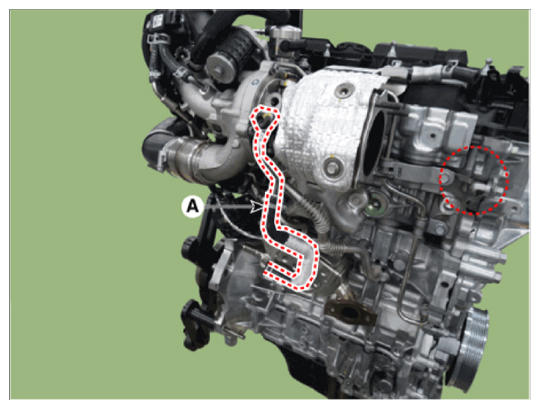

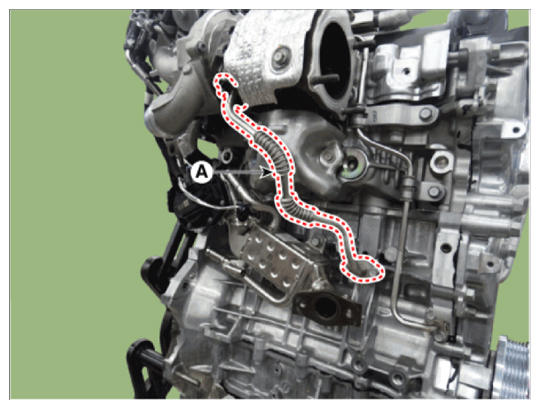

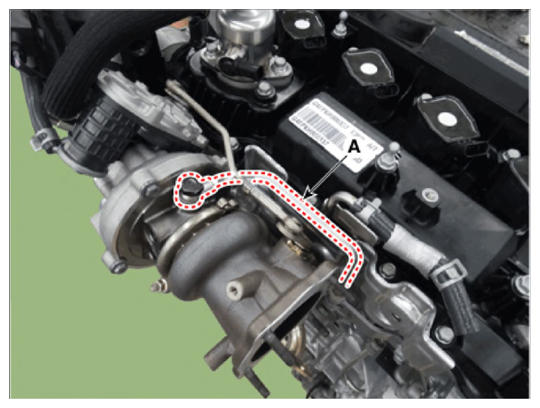

Remove the turbo charger oil feed pipe (A).
Tightening torque:

Oil feed pipe: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Oil feed pipe bracket bolt: 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with a new gasket.

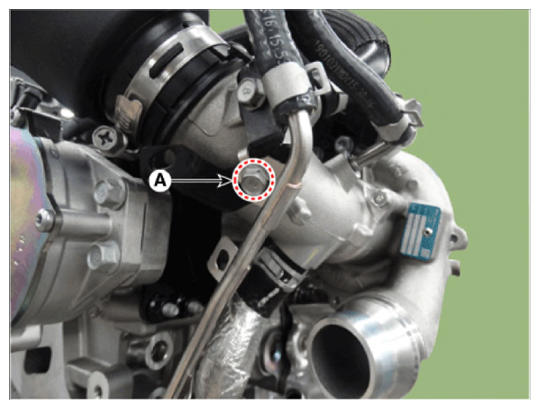

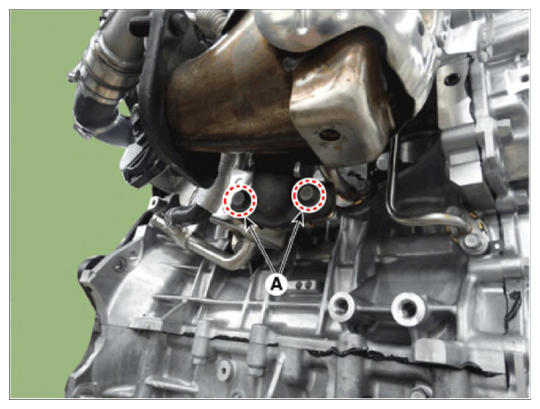

Remove the differential Pressure hose mounting bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

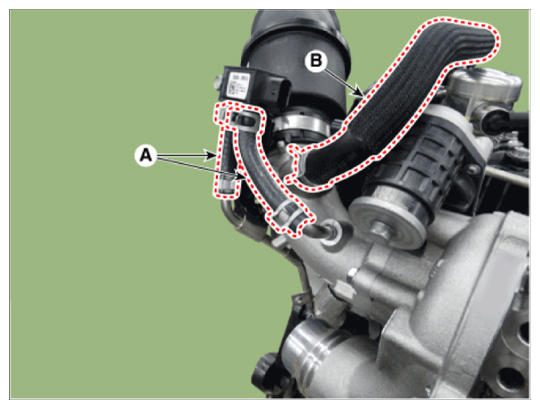

Disconnect the Differential Pressure hose (A) and breather hose (B).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the EGR hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the turbo charger heat protectors (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the exhaust manifold & turbo charger (A).
Tightening torque:

49.1 - 54.0 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with a new gasket.
CAUTION:
- When installing the exhaust manifold tighten the nuts with specified torque in the sequence shown.

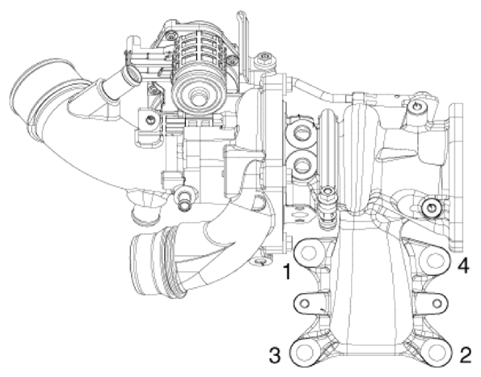

  Fig 3: Exhaust Manifold Nuts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
