Front Muffler

Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

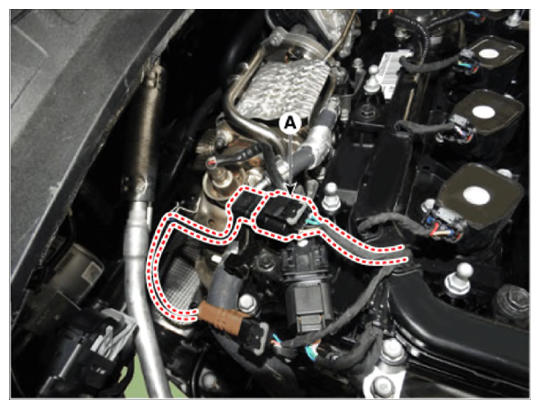

1. Disconnect the oxygen sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

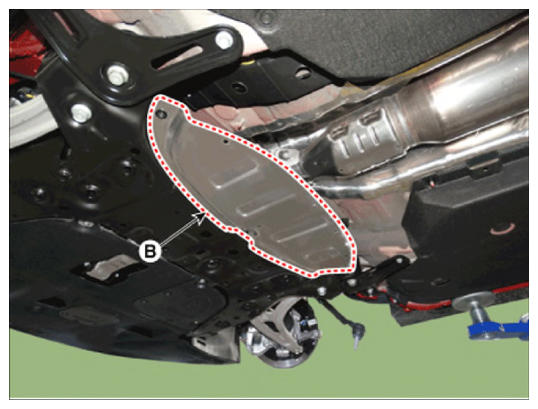

2. Remove the front muffler heat protector (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

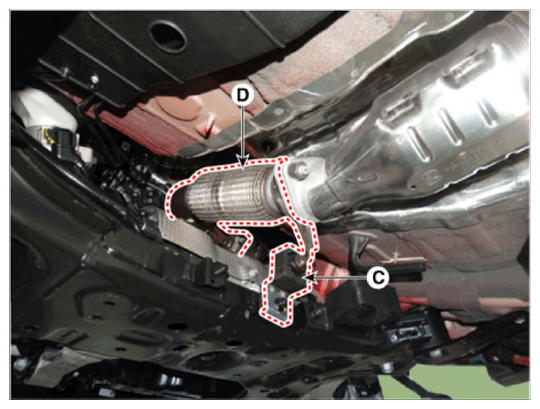

3. Loosen the hanger mounting nut, and then remove the hanger (C).

   Tightening torque:

   29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)

4. Remove the front muffler (D).

   Tightening torque:

   39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • When installing, replace with new gaskets.
