Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

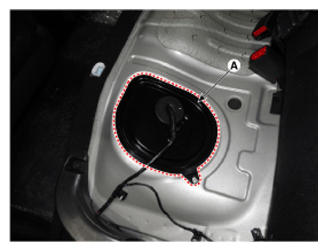

  3. Remove the fuel pump service cover (A).
    G12606955Courtesy of HYUNDAI MOTOR AMERICA

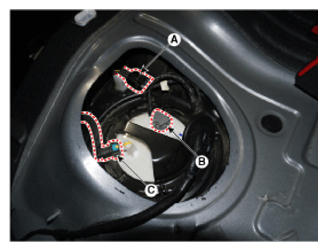

  4. Disconnect the fuel fuel tank pressure sensor connector (A).
  5. Disconnect the fuel pump control module connector (B).
  6. Disconnect the fuel feed tube quick-connector (C).
    G12606956Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the rear - LH wheel & tire.
  8. Lift the vehicle and support the fuel tank with a jack.

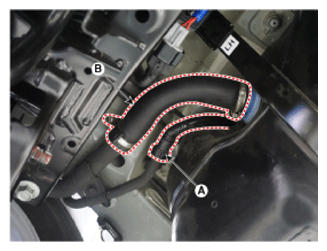

  9. Disconnect the fuel filler hose (A).
  10. Disconnect the ventilation hose (B).
    G12606957Courtesy of HYUNDAI MOTOR AMERICA

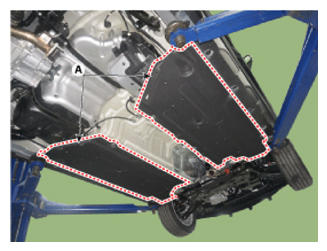

  11. Remove the under cover (A).
    G12606958Courtesy of HYUNDAI MOTOR AMERICA

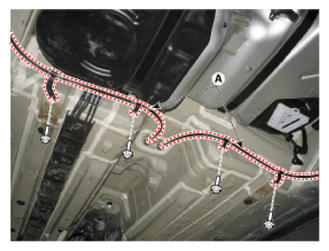

  12. Remove the brake line (A) bracket mounting bolts.
    G12606959Courtesy of HYUNDAI MOTOR AMERICA

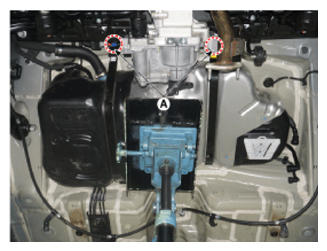

  13. Remove the fuel tank from the vehicle after removing the fuel tank band (A).
    G12606960Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
