Release Residual Pressure In Fuel Line

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • There may be some residual pressure even after "Release Residual Pressure in Fuel Line" work, so cover the hose connection with a shop towel to prevent residual fuel from spilling out before disconnecting any fuel connection.
  1. Turn the ignition switch OFF and disconnect the battery (-) cable.

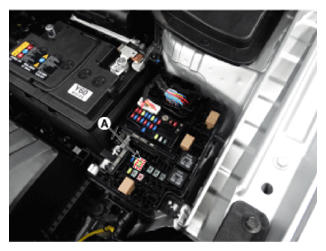

  2. Remove the fuel pump fuse (A).
    G12606954Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the battery (-) cable.
  4. Start the engine and let idle, and then turn the ignition switch OFF after the engine has stopped on its own.
