Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

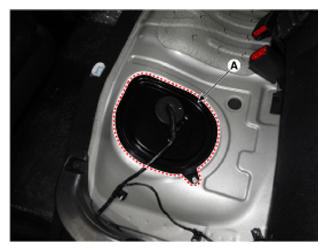

  3. Remove the fuel pump service cover (A).
    G12606961Courtesy of HYUNDAI MOTOR AMERICA

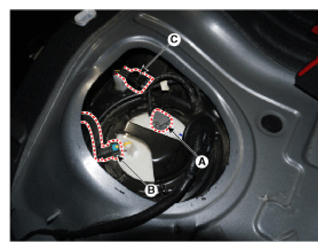

  4. Disconnect the fuel fuel tank pressure sensor connector (A).
  5. Disconnect the fuel pump control module connector (B).
  6. Disconnect the fuel feed tube quick-connector (C).
    G12606962Courtesy of HYUNDAI MOTOR AMERICA

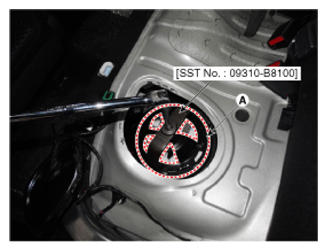

  7. Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G12606963Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the fuel pump from the fuel tank.
