Inspection Procedure

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

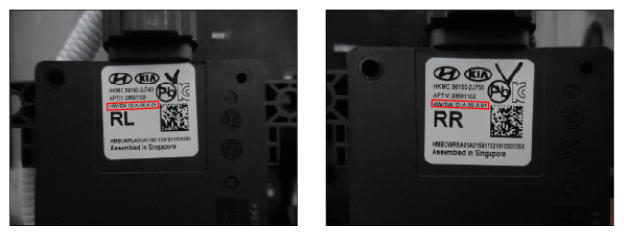

Check for software version on the BCW radar label. (Reference-fig.1)

G13492121

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the BCW and go to "VERIFICATION OF REPAIR " procedure.
In case of BCW is replaced, "BCW Radar Calibration" in Vehicle S/W Management must be performed.

No Good

Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
