Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 6

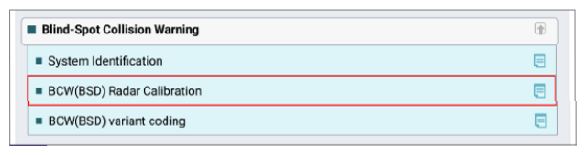

G13492140Courtesy of KIA MOTORS AMERICA, INC.

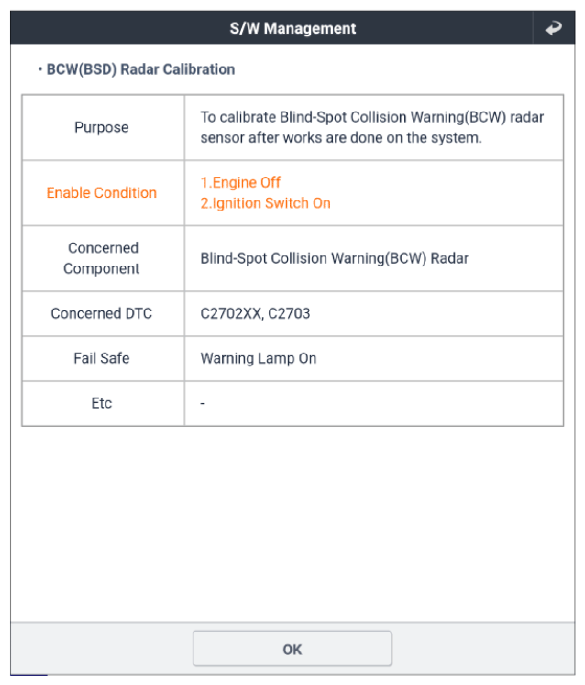

G13492141Courtesy of KIA MOTORS AMERICA, INC.

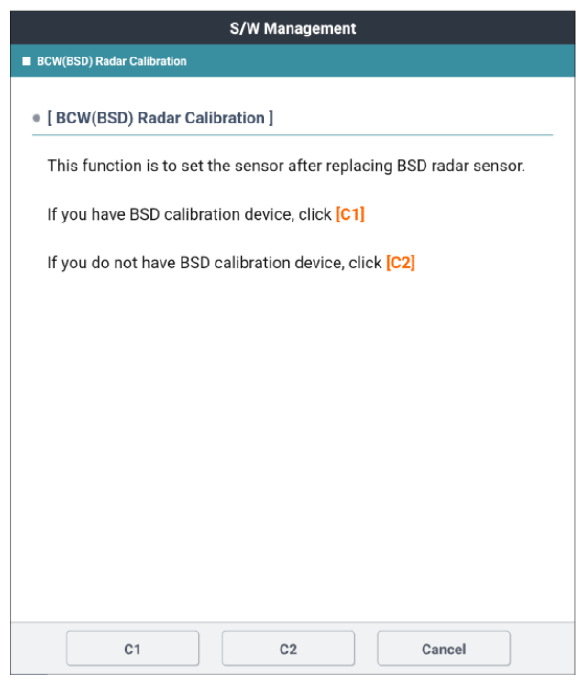

G13492142Courtesy of KIA MOTORS AMERICA, INC.

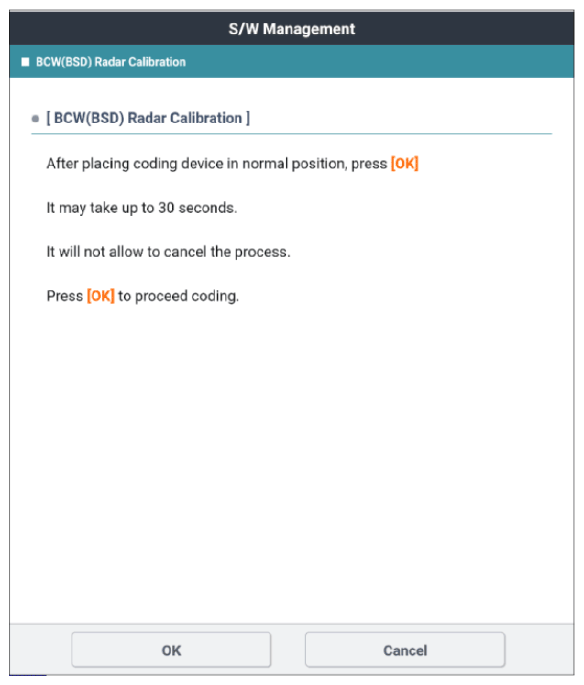

G13492143Courtesy of KIA MOTORS AMERICA, INC.

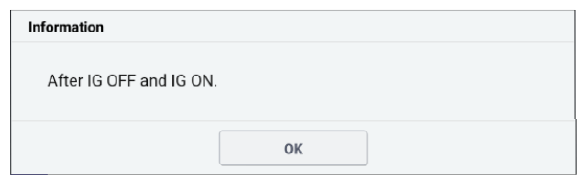

G13492144Courtesy of KIA MOTORS AMERICA, INC.

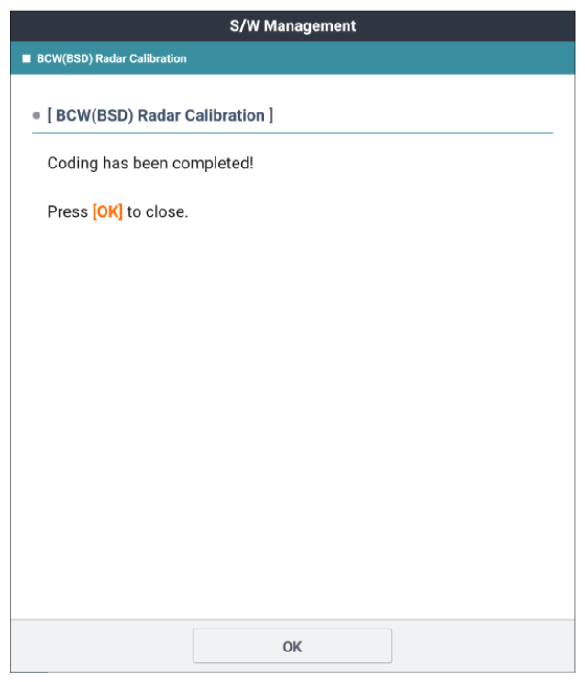

G13492145Courtesy of KIA MOTORS AMERICA, INC.
