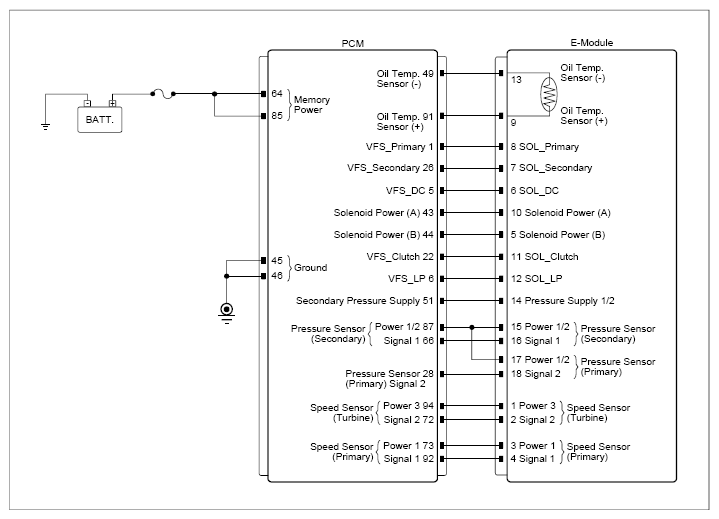

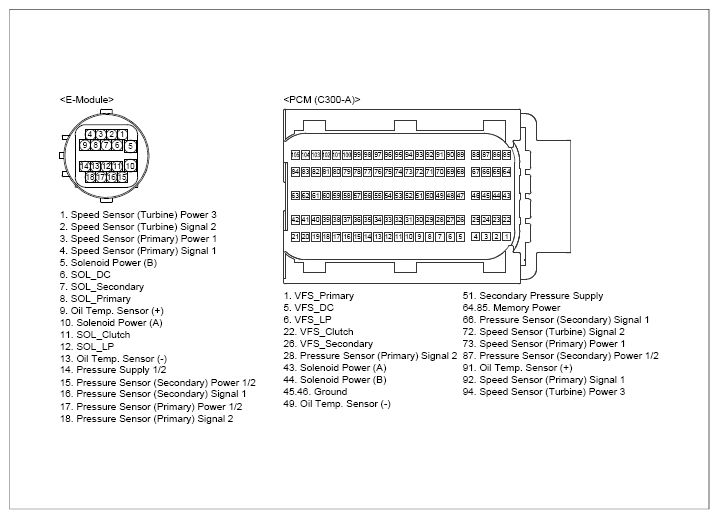

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
PCM connector | 64, 85 (Memory power) | Chassis ground | - | B+ |
| E-module connector | 5, 10 (power) | Chassis ground | - | Approx. 2.5V | |
|
PCM connector | 45, 46 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace PCM and do "S/W Management - Oil-pressure characteristics backUP & Input (TCU Replacement)" and then go to "VERIFICATION OF REPAIR " procedure.
- Perform the S/W management of P060100 Vehicle S/W Management code and then, go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
