Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Ignition switch "OFF".
- Connect KDS to Data Link Connector (DLC).
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

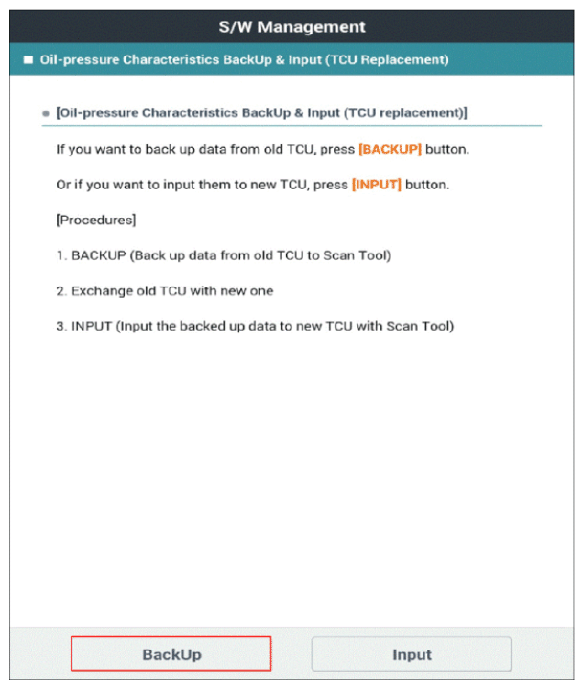

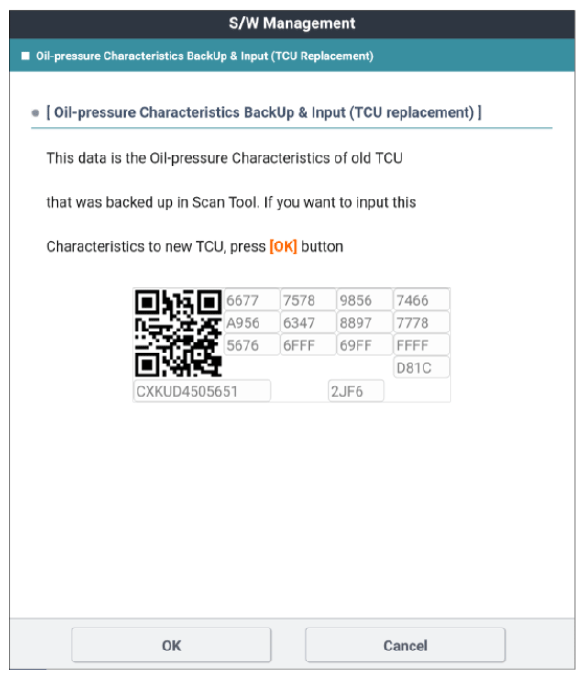

"Oil-pressure characteristics backUP & Input (TCU Replacement DCT CONTROL MODULE (TCM)
)" and go to "VERIFICATION OF REPAIR " procedure.
|

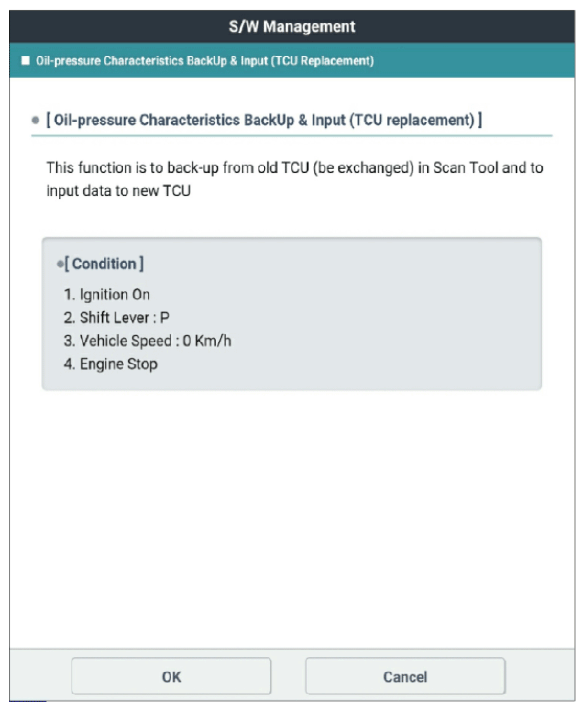

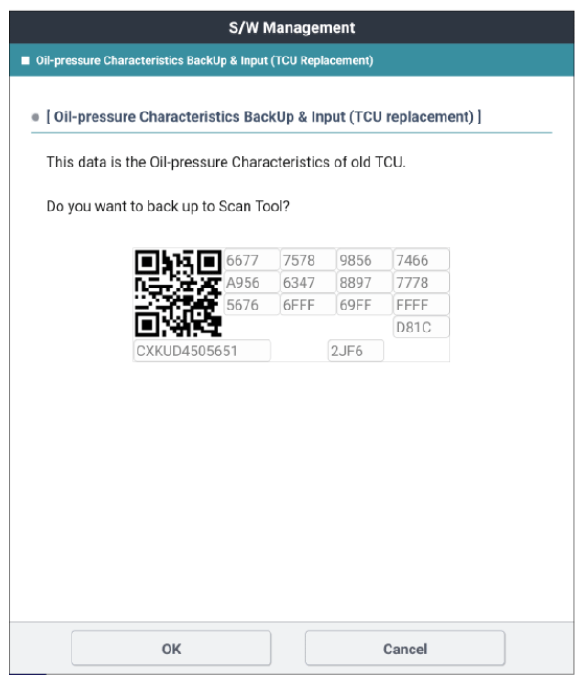

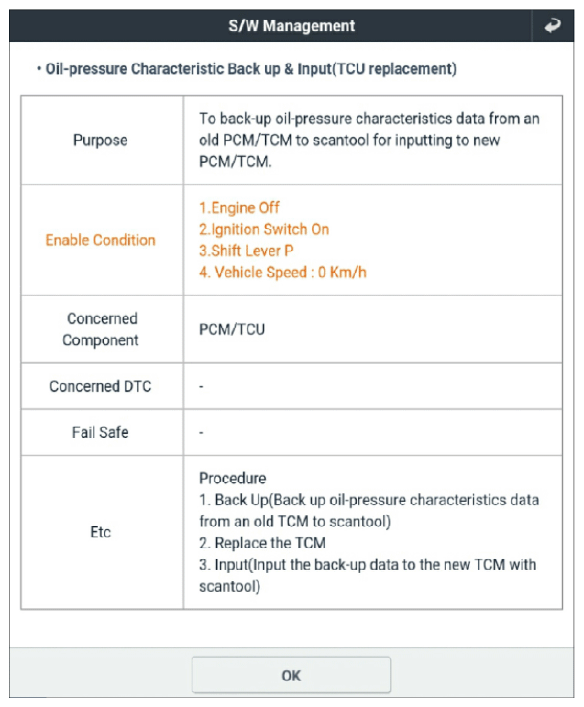

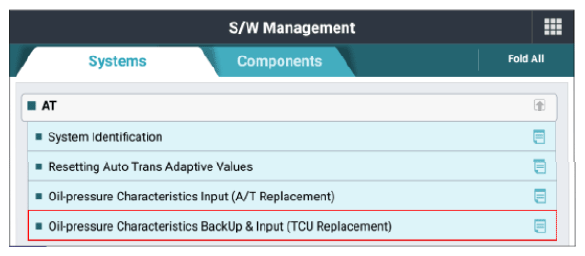

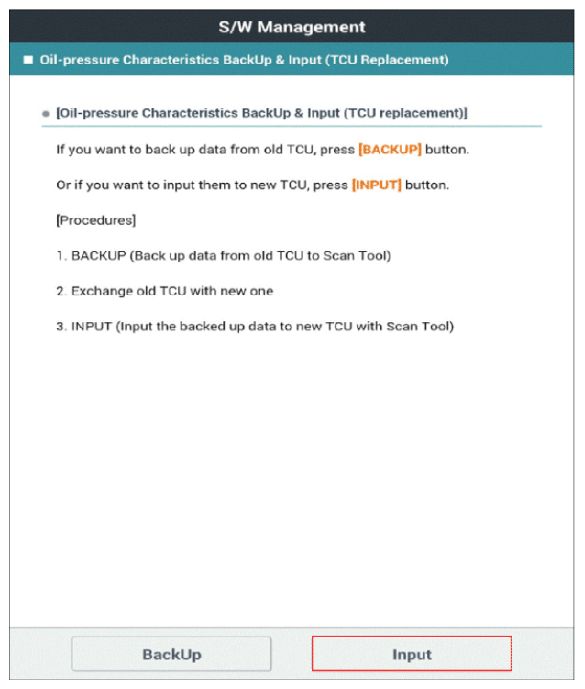

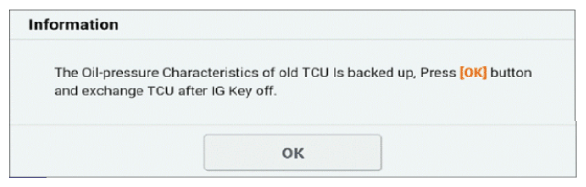

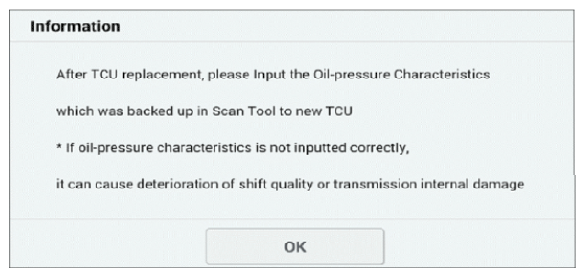

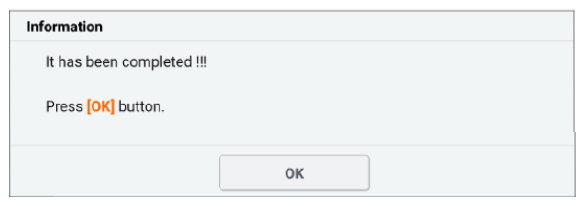

Fig.1 to 10 |
