Component Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

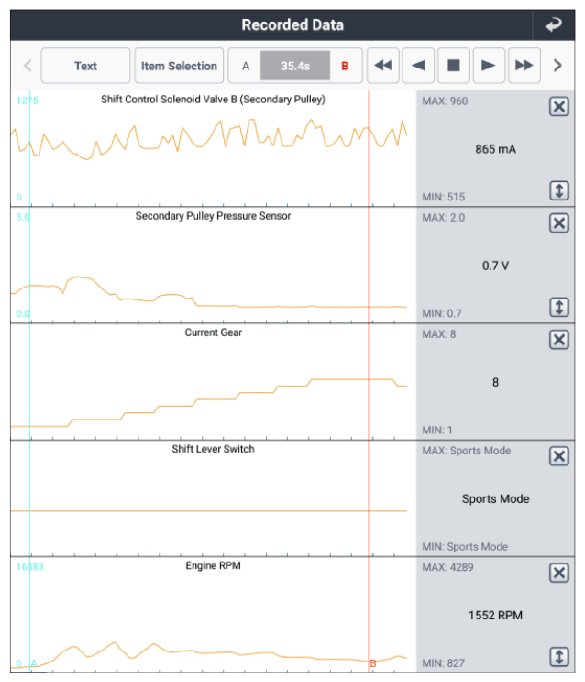

Ignition "ON". Engine "ON". Driving a vehicle.	Connect KDS to Data Link Connector (DLC). Engine "ON". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown below in "Current Data" with KDS.	Fig.1

G13507385

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace PCM and do "S/W Management - Oil-pressure characteristics backUP & Input (TCU Replacement)" and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Components has bending, corrosion, contamination, deterioration, and/or damage that would be problem and go to "VERIFICATION OF REPAIR " procedure when the component are replaced.
Refer to "REPAIR PROCEDURES " and repair or replace the A/T. (Perform the S/W Management when replace the transmission)
Perform the S/W management of P073000 Vehicle S/W Management code and then, go to "VERIFICATION OF REPAIR " procedure.
