Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Input (A/T Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 5

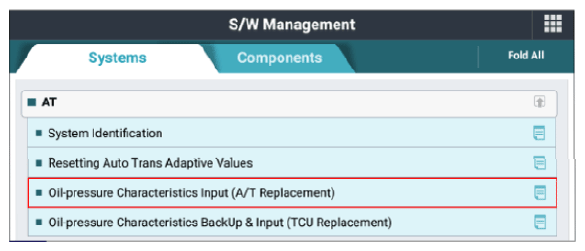

G13507325Courtesy of KIA MOTORS AMERICA, INC.

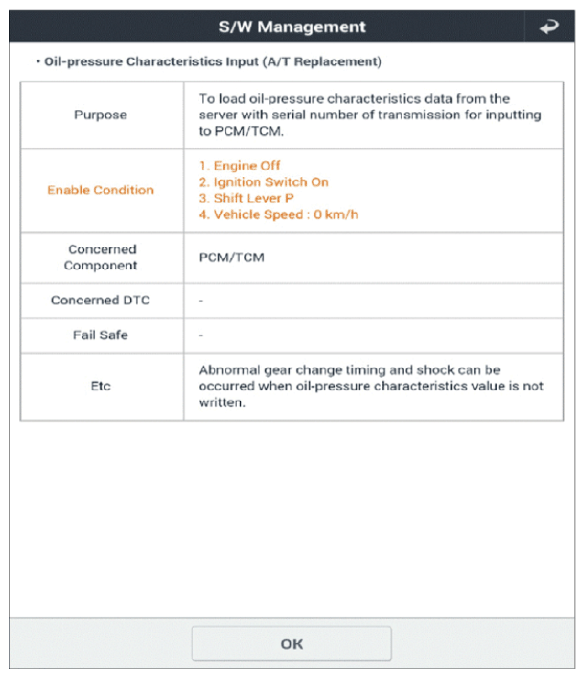

G13507326Courtesy of KIA MOTORS AMERICA, INC.

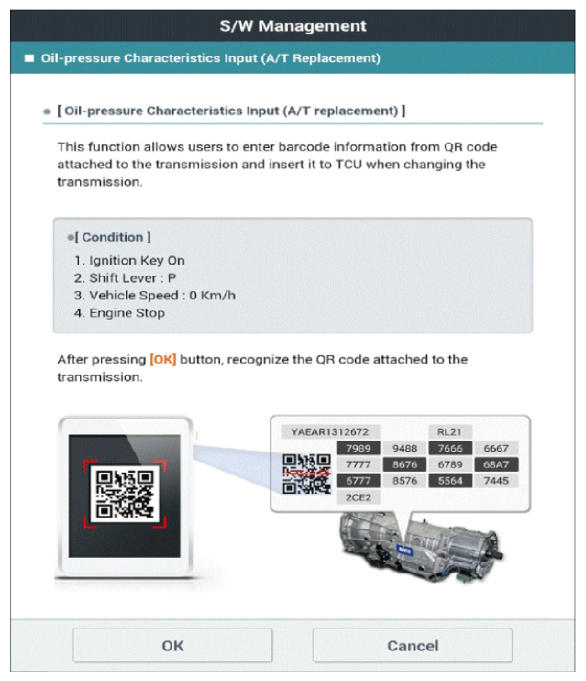

G13507327Courtesy of KIA MOTORS AMERICA, INC.

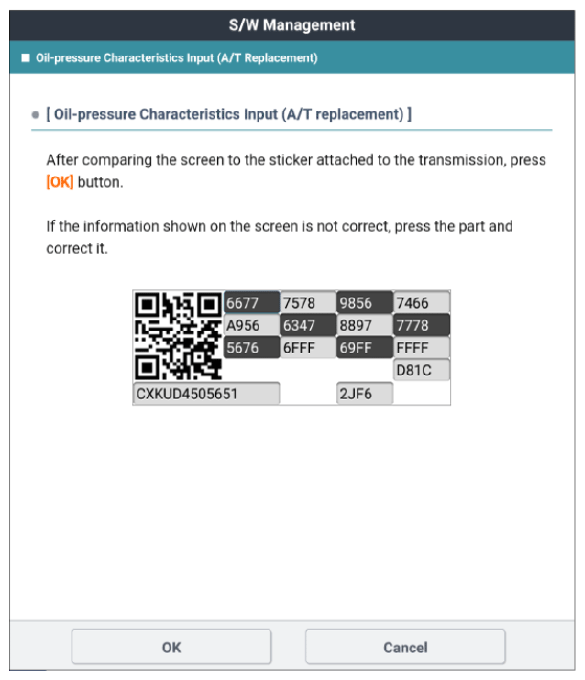

G13507328Courtesy of KIA MOTORS AMERICA, INC.

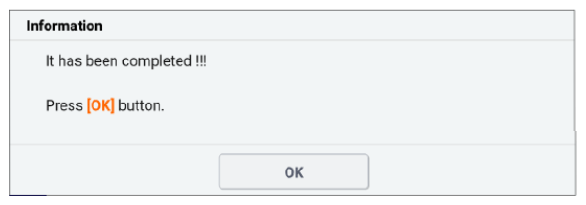

G13507329Courtesy of KIA MOTORS AMERICA, INC.
