Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

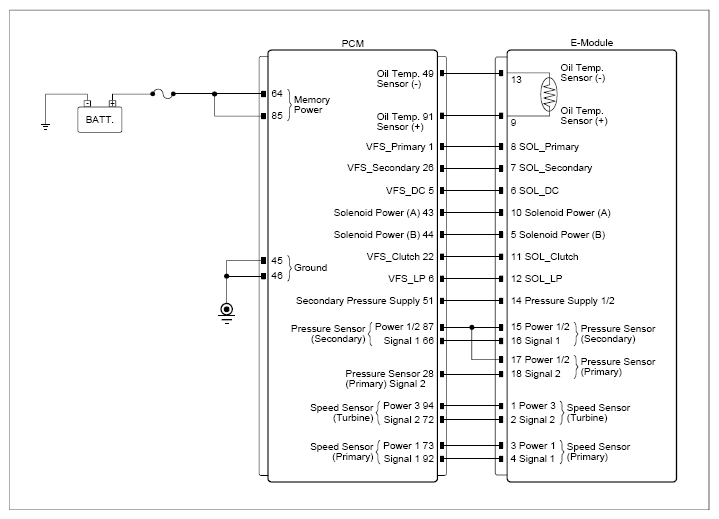

Courtesy of KIA MOTORS AMERICA, INC.

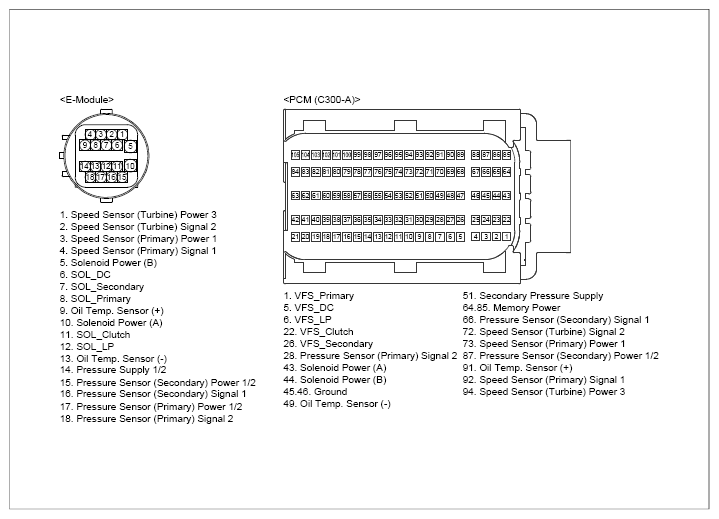

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	E-module connector	9 (+)	Chassis ground	-	Approx. 5V
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	E-module connector	13 (-)	Chassis ground	-	Approx. 0V

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit between ATM solenoid and PCM and then go to "VERIFICATION OF REPAIR " procedure.
