Power Circuit Inspection

WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

■ Open or Short Check

IG "ON" & ENG "OFF".
Measure voltage between power terminal of the AHB harness connector and chassis ground.
Specification: Approx. B+

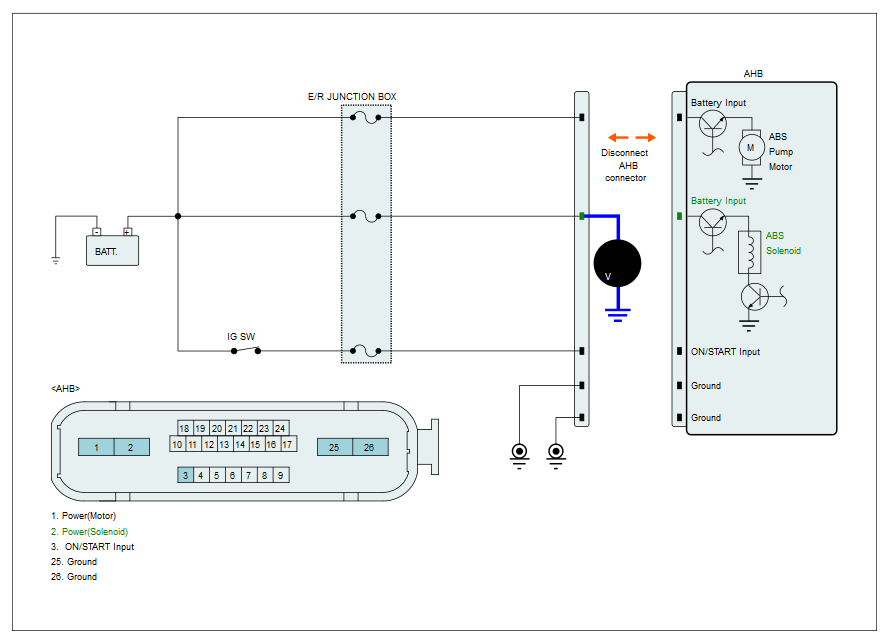

Fig 1: Measuring Voltage Between Power Terminal Of AHB Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured value within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Check for open or blown fuse referring to "Circuit Diagram".
- Repair open or short in power circuit between battery and AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
