Section 48 (Engine Control System Diagnosis - 2.0L (3 Of 3) (Except HEV))
>>
DTC P2563: Turbocharger Boost Control Position Sensor 'A' Circuit Range/Performance
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

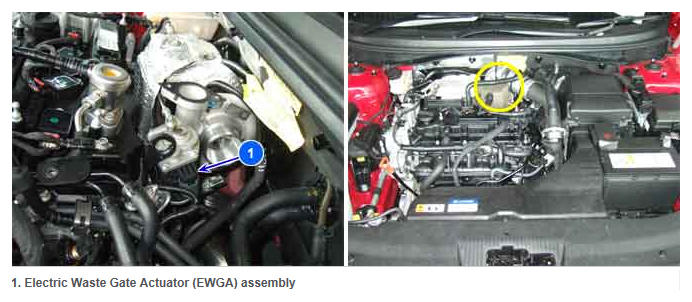

Fig 1: Electric Waste Gate Actuator Assembly Component
Courtesy of HYUNDAI MOTOR AMERICA
