DTC P2562: Turbocharger Boost Control Position Sensor 'A' Circuit: General Description

WARNING: This page is about a different variant/trim than selected.

Electric Waste Gate Actuator (EWGA) controls by-pass valve before turbine. ECM opens by-pass valve for exhaust gas to be bypassed when the pressure of exhaust gas is too low because turbine can be a lack to decrease engine power at low RPM.

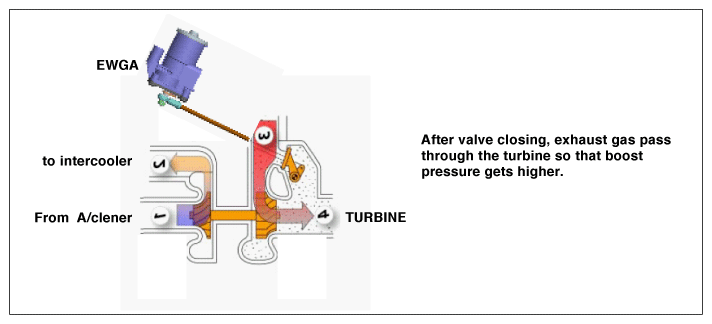

Fig 1: Electric Waste Gate Actuator Operation Diagram
G11992934Courtesy of HYUNDAI MOTOR AMERICA
