Component Inspection

■ EWGA Inspection

1. Monitor "Current Data" during actuating EWGA "Actuation Test".
2. Visually check the position of the EWGA during activation referring to below Fig 1Fig 2.

   Specification  :

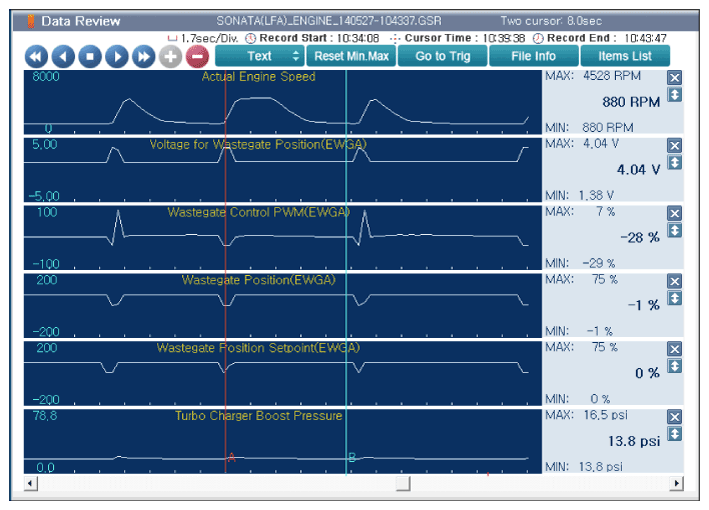

   Fig 1: Scantool Display - Service Data When EWGA Closed

   Courtesy of HYUNDAI MOTOR AMERICA

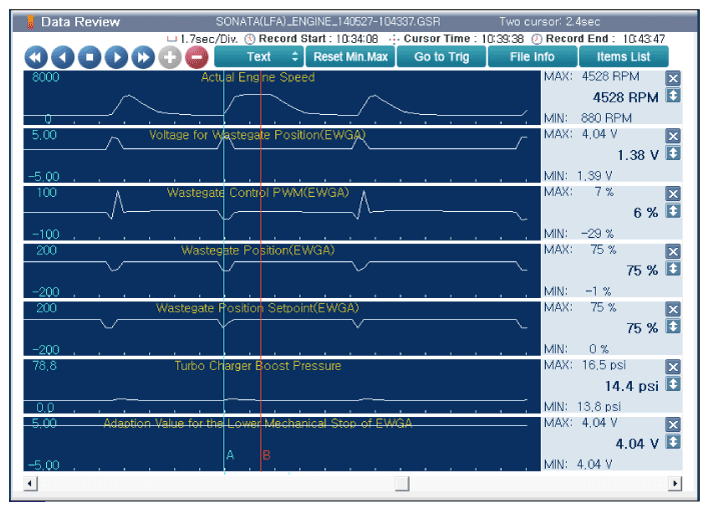

   Fig 2: Scantool Display - Service Data When EWGA Open

   Courtesy of HYUNDAI MOTOR AMERICA

   Position	Output Voltage [V]	Operating Angle [°]	Lift [mm]
   Mechanical Close end stop Position (MCP)	4.8	0	0
   Electrical Close end stop Position (ECP)	3.8	25.6	2.2
   Electrical Open end stop Position (EOP)	1.0	97.2	16.55
   Mechanical Open end stop Position (MOP)	0.5	110	19.2

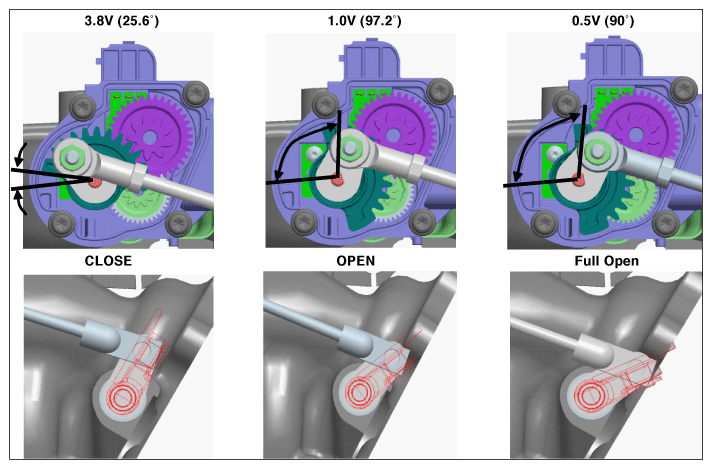

   Fig 3: Checking EWGA Opening And Closing Position

   Courtesy of HYUNDAI MOTOR AMERICA

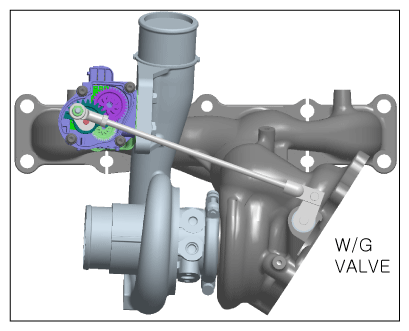

   Fig 4: Waste Gate Valve

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is parameter displayed within specifications?

   YES

   • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good EWGA and check for proper operation. If the problem is corrected, replace EWGA and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
