Component Inspection
WARNING: This page is about a different variant/trim than selected.

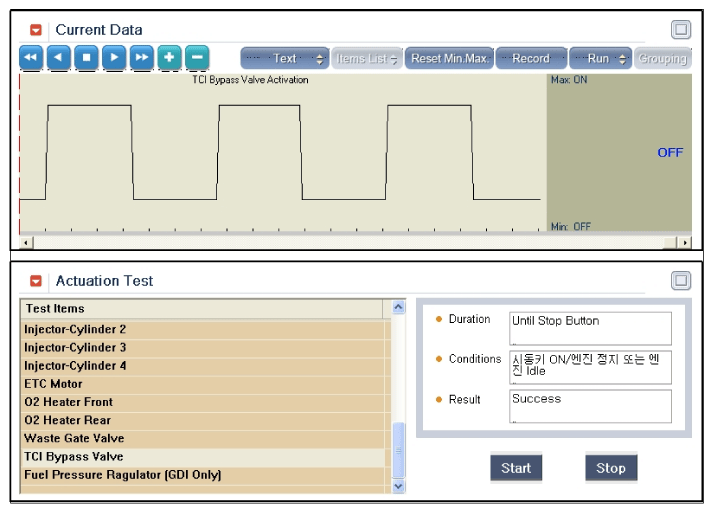

■ RCV Actuation Test
- Connect GDS and select "Actuation Test" mode.
- Start the engine.
- Start "Turbo Charger Bypass Valve".
- Is the waveform normal?
YES
- Go to next step below
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ RCV Resistance Inspection
- IG "OFF".
- Disconnect RCV connector.
- Measure resistance between power terminal and control terminal of the sensor connector (Component side)
Specification:
Item Resistance (Ω) Normal Parameter At 20°C (68°F) 28.3 ~ 31.1 - Is the measured resistance within specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good RCV and check for proper operation. If the problem is corrected, replace RCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
