Section 48 (Engine Control System Diagnosis - 2.0L (3 Of 3) (Except HEV))
>>
DTC P2251: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1)
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

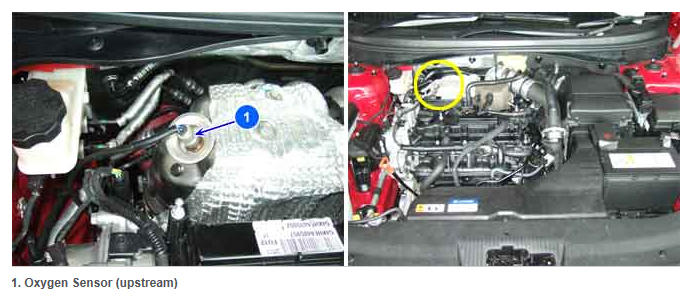

Fig 1: Oxygen Sensor (Upstream) Component
Courtesy of HYUNDAI MOTOR AMERICA
