E-CVVT Learning Value Erasing

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to DLC connector.
  2. IG "ON".
  3. Perform "E-CVVT Learning Value Erasing" in "Vehicle S/W Management" menu on GDS. (Fig 1)
    NOTE: When the learned value for electronic cam position is erased, start learning the cam position while cranking. When it is completed, engine is started.
    Cranking should be repeated for maximum 2 to 3 for learning.

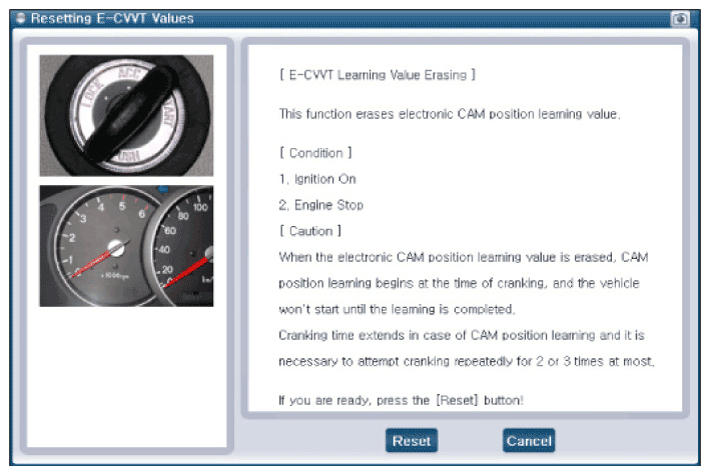

    Fig 1: Scantool Display - E-CVVT Learning Value Erasing
    G11992840Courtesy of HYUNDAI MOTOR AMERICA
