Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

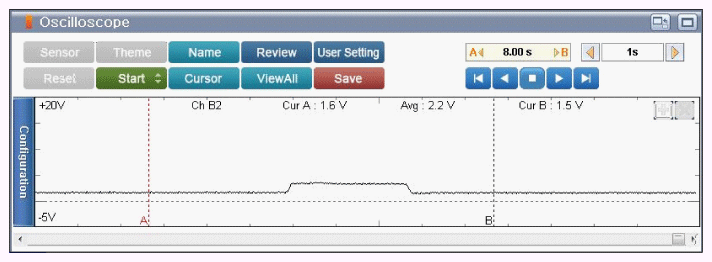

Fig 1: Scantool Display - Normal Waveform Of VCM Position Sensor At Acceleration

Courtesy of HYUNDAI MOTOR AMERICA

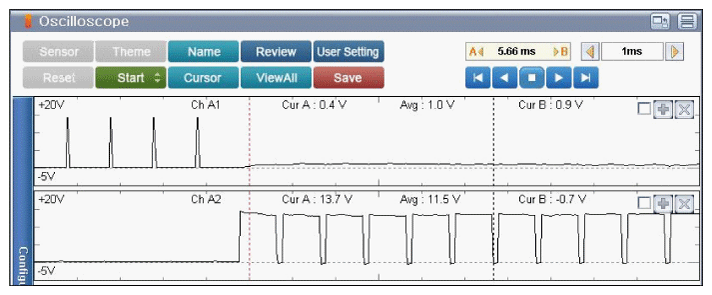

Fig 2: Scantool Display - Normal Waveform Of VCM Motor Control Line At Acceleration (Flap Open)

Courtesy of HYUNDAI MOTOR AMERICA

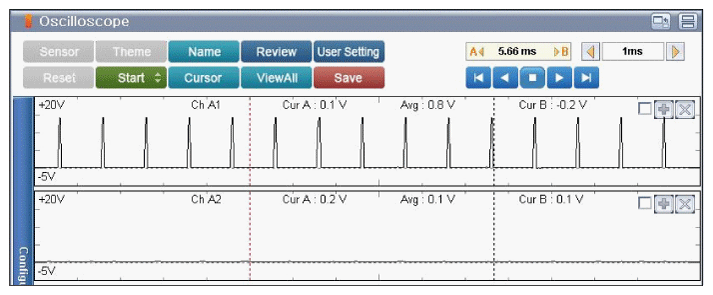

Fig 3: Scantool Display - Normal Waveform Of VCM Motor Control Line At Idle (Flap Close)

Courtesy of HYUNDAI MOTOR AMERICA
