Section 48 (Engine Control System Diagnosis - 2.0L (3 Of 3) (Except HEV))
>>
DTC P1076: Camshaft Position Actuator Relay Circuit Low/Open
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

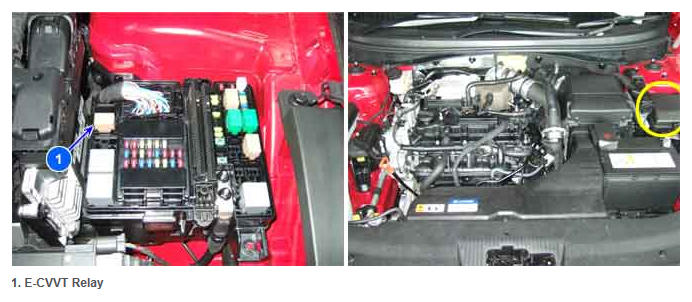

Fig 1: E-CVVT Relay Component
Courtesy of HYUNDAI MOTOR AMERICA
