Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Disconnect SMARTRA Connector.
Ignition "ON" & Engine "OFF".
Measure voltage between Engine Control Relay Power of SMARTRA harness connector and chassis ground.
Specification: 9 ~ 16V

Fig 1: I/P Junction Box Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

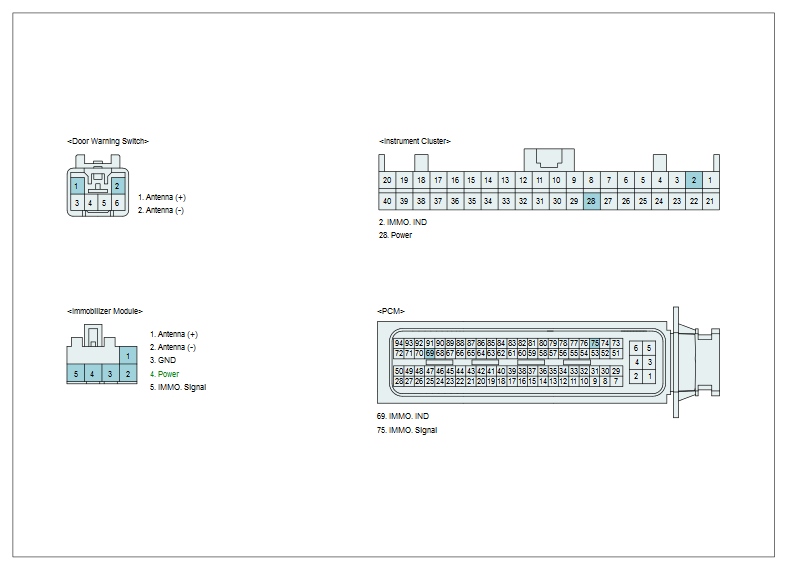

Fig 2: Door Warning Switch Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured voltage within specifications?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Check for open or short in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
