Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

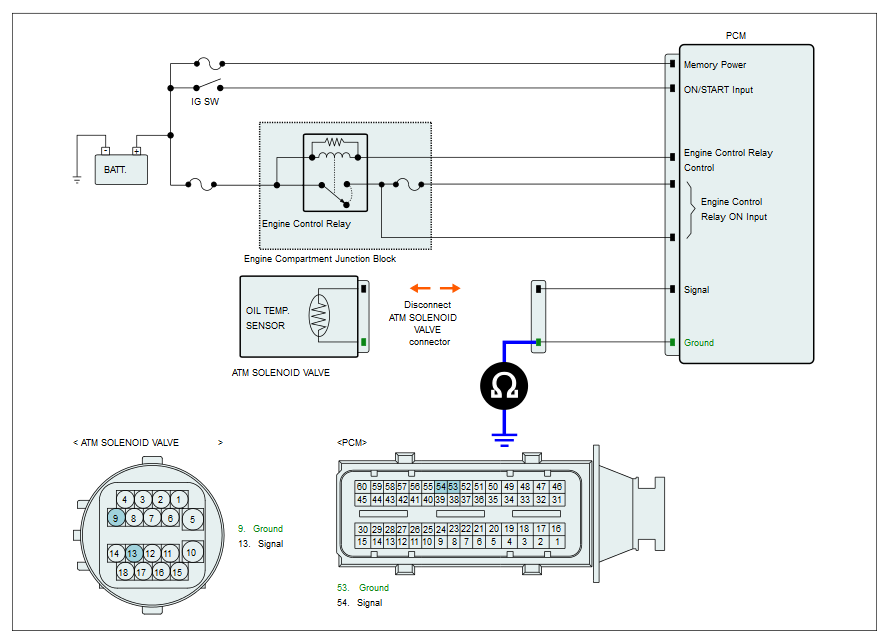

- Ignition off.
- Disconnected Oil temperature sensor connector.
- Measure a resistance between Ground of Oil temperature sensor and chassis ground.
Specification: Approx. 0 Ω
- Is the measured resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check harness for ground circuit opened. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
