Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Ignition ON/Hybrid Ready (Cluster Indicator "READY" On) Vehicle Parked.
Connect GDS and select "Data Analysis" mode.
Select "Current Data" mode and monitor "Generator (HSG) Temperature" parameter.

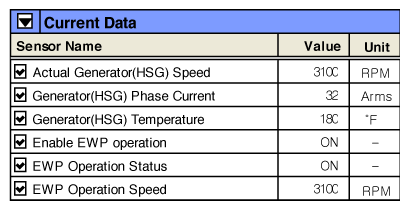

Fig 1: Screen Display - Generator (HSG) Temperature
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Sensor Name
Courtesy of HYUNDAI MOTOR AMERICA

(Fig.2-2) Check EWP is operating correctly.
Is the measured data within specifications?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
