Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
■ Check Short to Ground in Harness
- Ignition OFF
- Disconnect safety plug from the main battery (Wait for more than 5 minutes after disconnecting).
- Disconnect Generator (HSG) Temperature Sensor and MCU main harness connector.

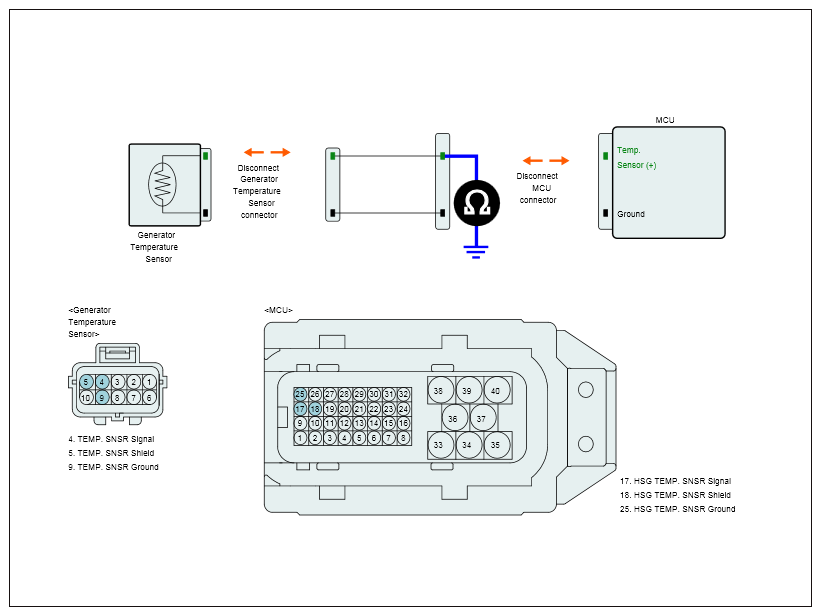

- Measure resistance between Signal terminal of MCU harness connector and chassis ground.
Specification: Infinity
- Is the measured resistance within specifications?
YES
- Go to Next procedure.
NO
- Check for short to ground in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
