Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF"
- Disconnect CMPS #1 sensor connector
- Ignition "ON" & Engine "OFF"

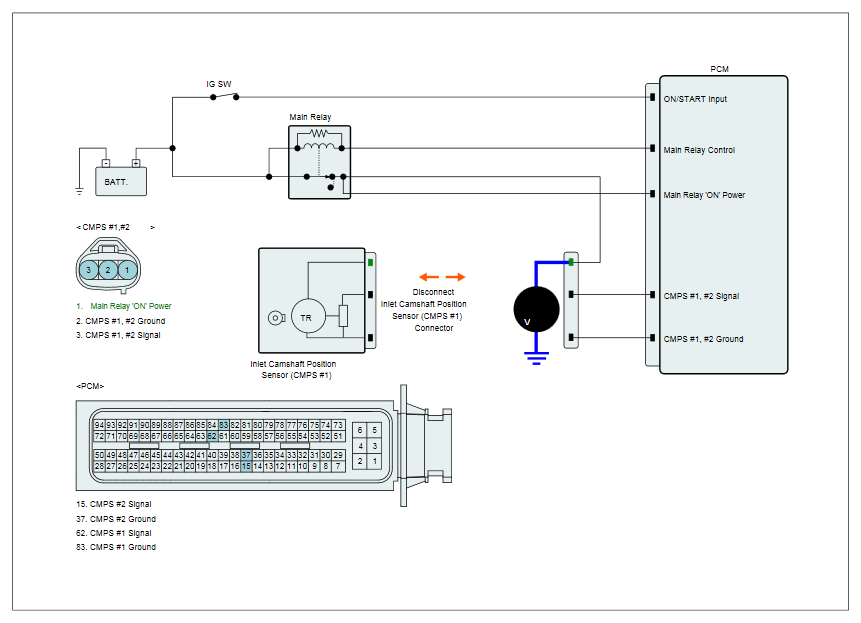

- Measure voltage between power terminal of CMPS #1 harness connector and chassis ground.
Specification: Approx. B+
- Is voltage within the specification?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure
NO
- Check for a open in the power supply circuit between the main relay and the CMPS
Especially check for open or blown 10A sensor fuse
Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
