Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF"

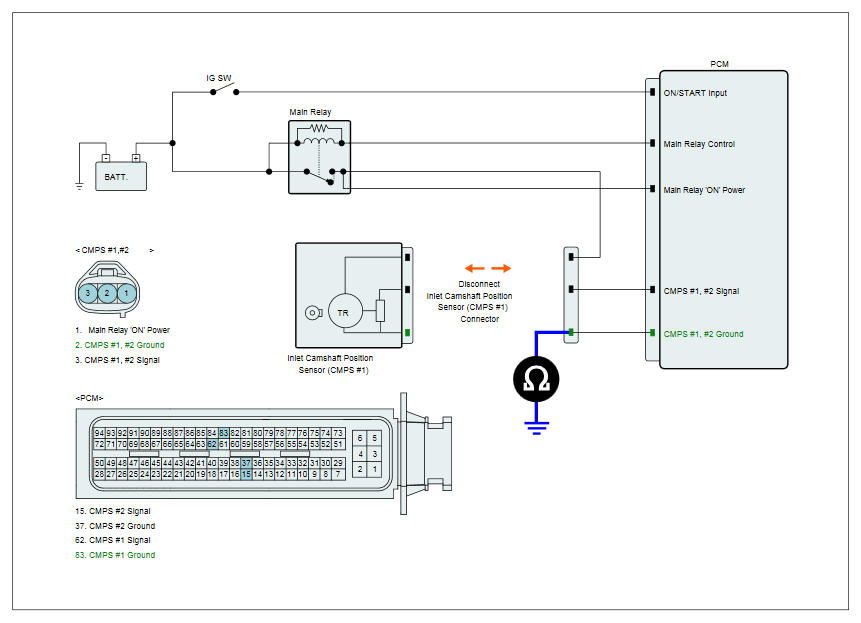

- Measure resistance between ground terminal of CMPS #1 harness connector and chassis ground.
Specification: Approx. 0Ω
- Is resistance within the specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure
NO
- Check for an open or short to battery in the ground circuit.
Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
